For Toyota Vellfire Alphard AGH30 Welcome LED Light Foot Lamp

Alphard VELLFIRE 30 series bottom long Assist Grip Welcome Light LED. It is an item to lighten your feet while door open.

installation video :https://youtu.be/w-L4KJo__hY

As for wiring connection, you will connect with the wiring you want to link with yourself.
Example) When linked with room lamp +/-, the door opens and lights up as a welcome lamp.

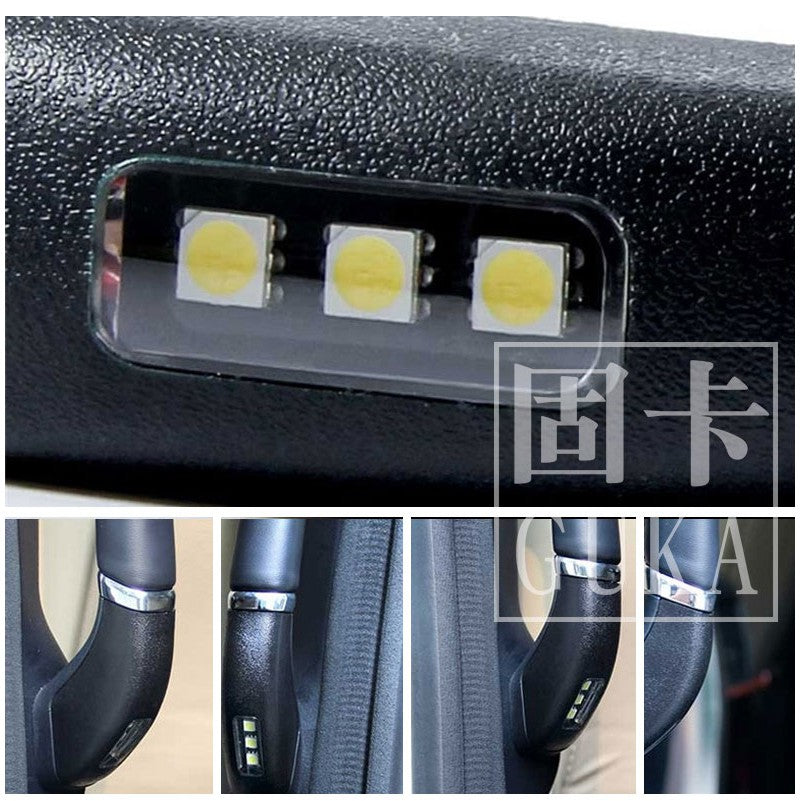

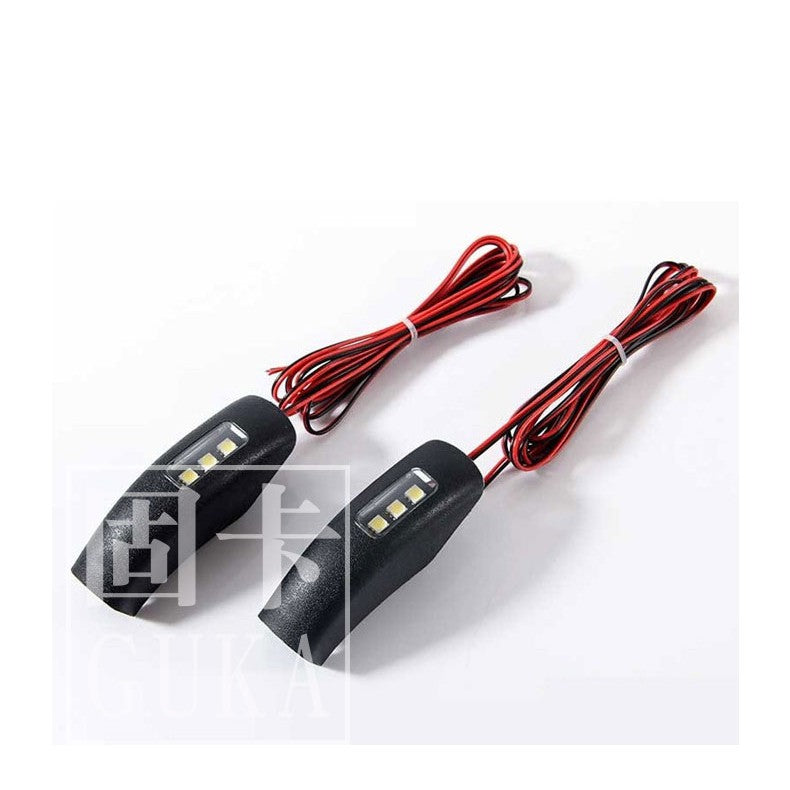

For this product, replace the bottom cover of the assist grip (handrail) with the LED built-in cover and lighten the surroundings brightly when getting on and off.

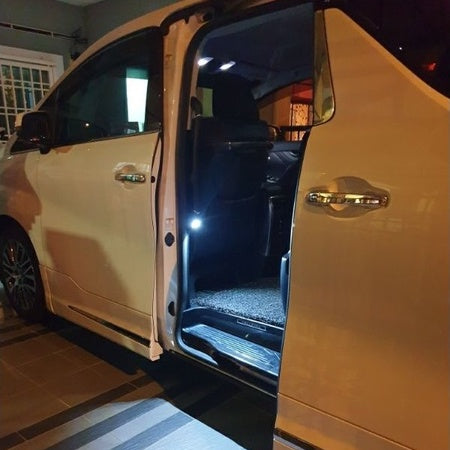

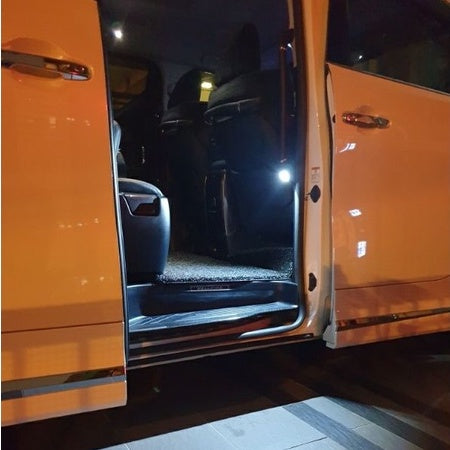

Since it can also be linked with the door opening and closing, it is safe because you can check the steps for stepping out and puddles etc. when getting on and off at night.

In addition, because it is a type that replaces the cover part of the assist grip, there is no retrofit feeling and the appearance is neatly refreshed.
There is no sense of incompatibility inside the car after installation, practical and dress up effect is outstanding.

1) Remove the cover & bolts of the three positions of the assist grip.
(Please use liner peeling, flathead screwdriver, torque wrench etc)
(2) Remove the assist grip (handrail), the mall behind the driver's seat and the rear step panel.
(3) Through the wiring of products.
(If you want to hide the wiring, you need to open a hole)
(4) Remove the mall behind the rear side door and pass the rear while hiding the ground wire.
(5) Door opening / closing sensor Remove the ground from the back.
(Please remove the coupler and connect)
(6) Pass the plus wire through the panel at the center pillar.
Remove the foot side panel and the step panel of the driver's seat and pass the positive wire forward.
(7) Please connect the positive wire to the power supply line all the time.
(Please be aware of electric shock and short circuit as it is always power supply wire)
* The color of the code may be different depending on the car.
Please check with testers etc in advance.

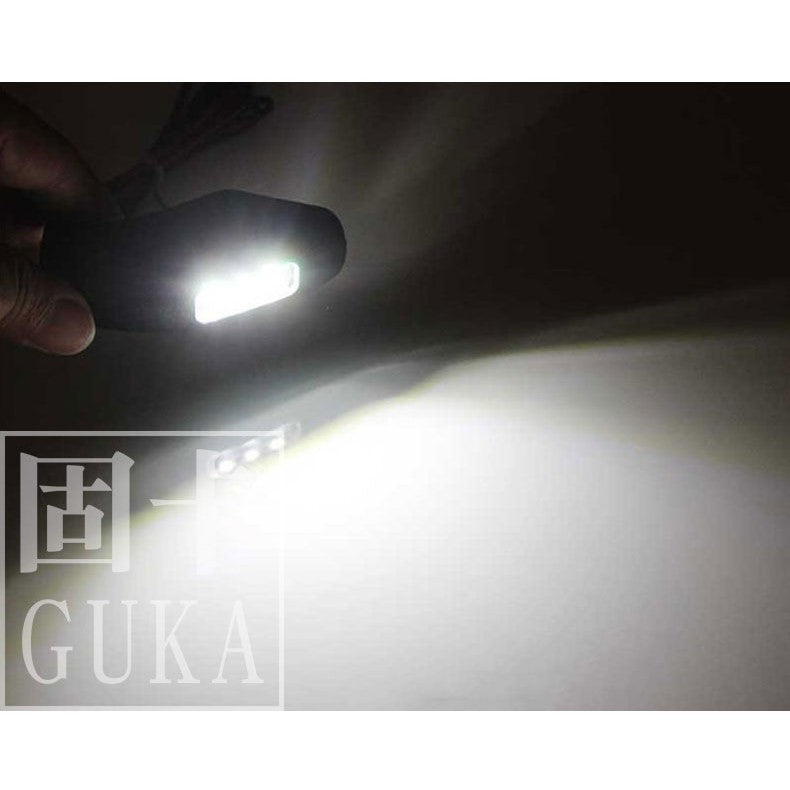

(8) Please check the lighting here.
(In the case of wiring with electro tap, there are things that are not connected tightly rarely.
If it does not light up, please confirm that it is firmly connected)
(Also please make sure that the coupler you removed is installed)
(9) If it lights successfully, return panels, malls, assist grips etc. removed in the reverse order.
(10) The product is fixed to the bottom of the assist grip, and the driver's seat side is complete.
(11) If you can install the passenger side in the same process, it is completed.

OEM Part Made In China
