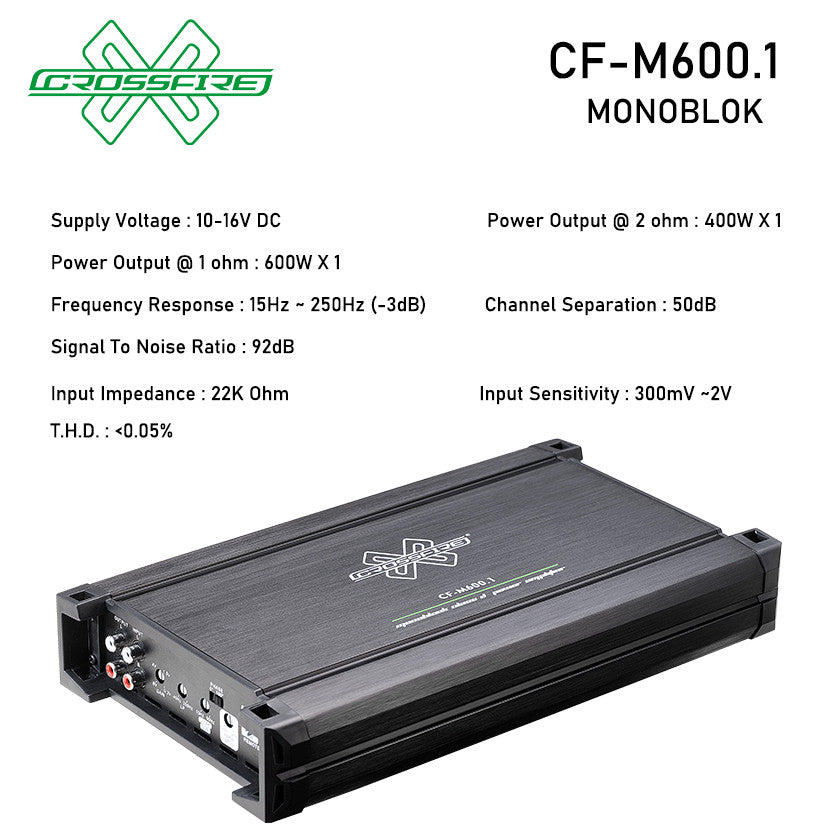

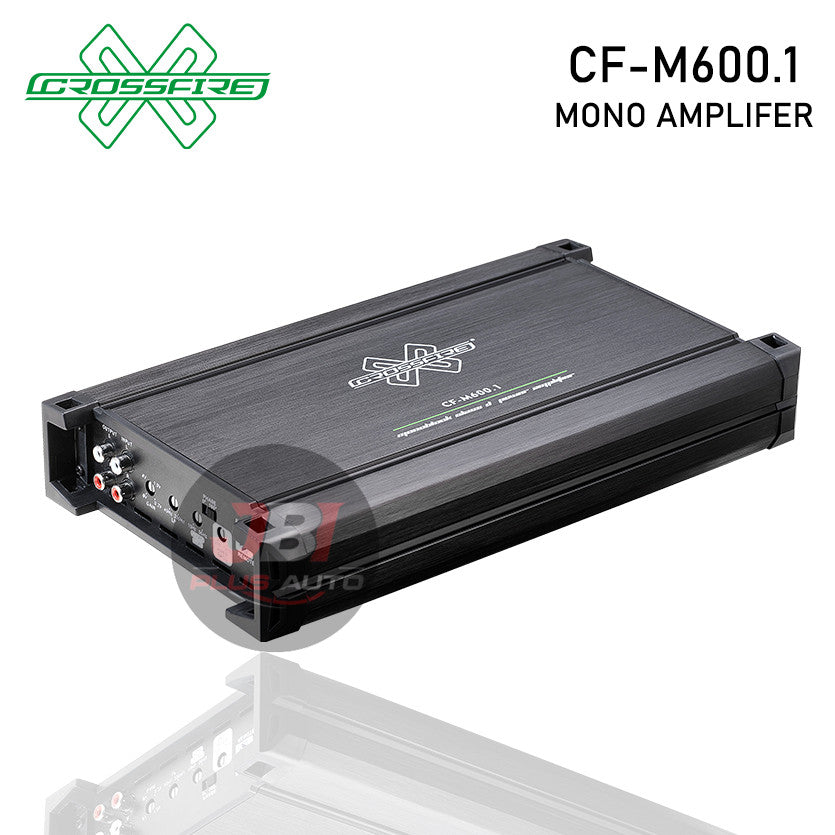

CF-M600.1
Mono Class D power amplifier
Output Power : 2 ohm 400W * 1
Output Power : 1 ohm 600W * 1
2 ch RCA Input / 2 ch RCA Output
Voltage : 11-15V DC
Effective Frequency :15Hz - 250Hz
Signal Noise Ratio : >92dB(+A)
Input Resistance : 22Kohm
Input Sensitivity : 9 - 0.2V Rated
Harmonic Distortion : <0.05%
Sound Channel Separation : 50dB(+A)
Bass Boost : 0 - 12dB
Dimensions:(L)325mm*(W)180mm*(H)51mm
