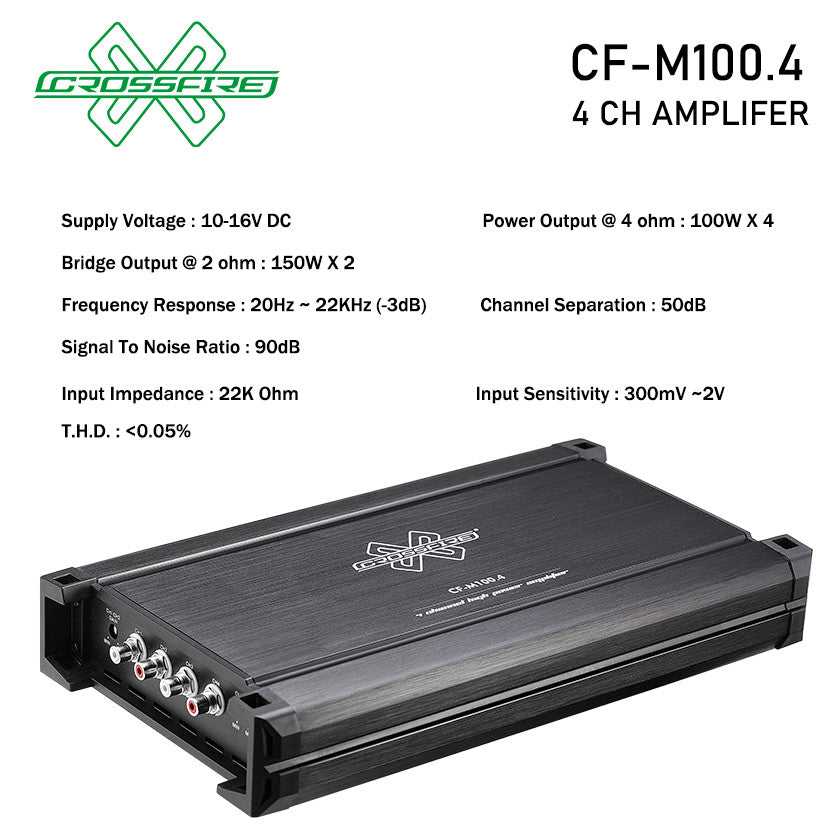

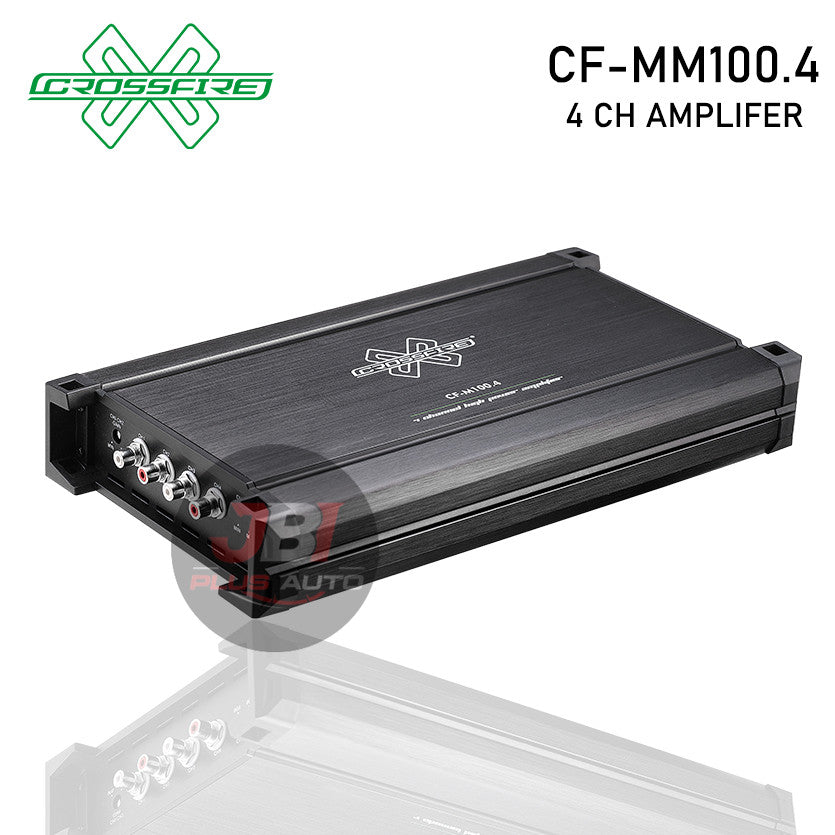

M100.4
Class AB Amplifier
4 Channel Amplifier
Output Power : 4 ohm 100W * 4
Bridge Output : 4 ohm 150W * 2
4 ch RCA Input
Voltage : 11-15V DC
Effective Frequency :20Hz - 22KHz
Signal Noise Ratio : >90dB(+A)
Input Resistance : 22Kohm
Input Sensitivity : 300mV - 2V
Harmonic Distortion : <0.05%
Sound Channel Separation : 50dB(+A)
Dimensions:(L)325mm*(W)180mm*(H)51mm
