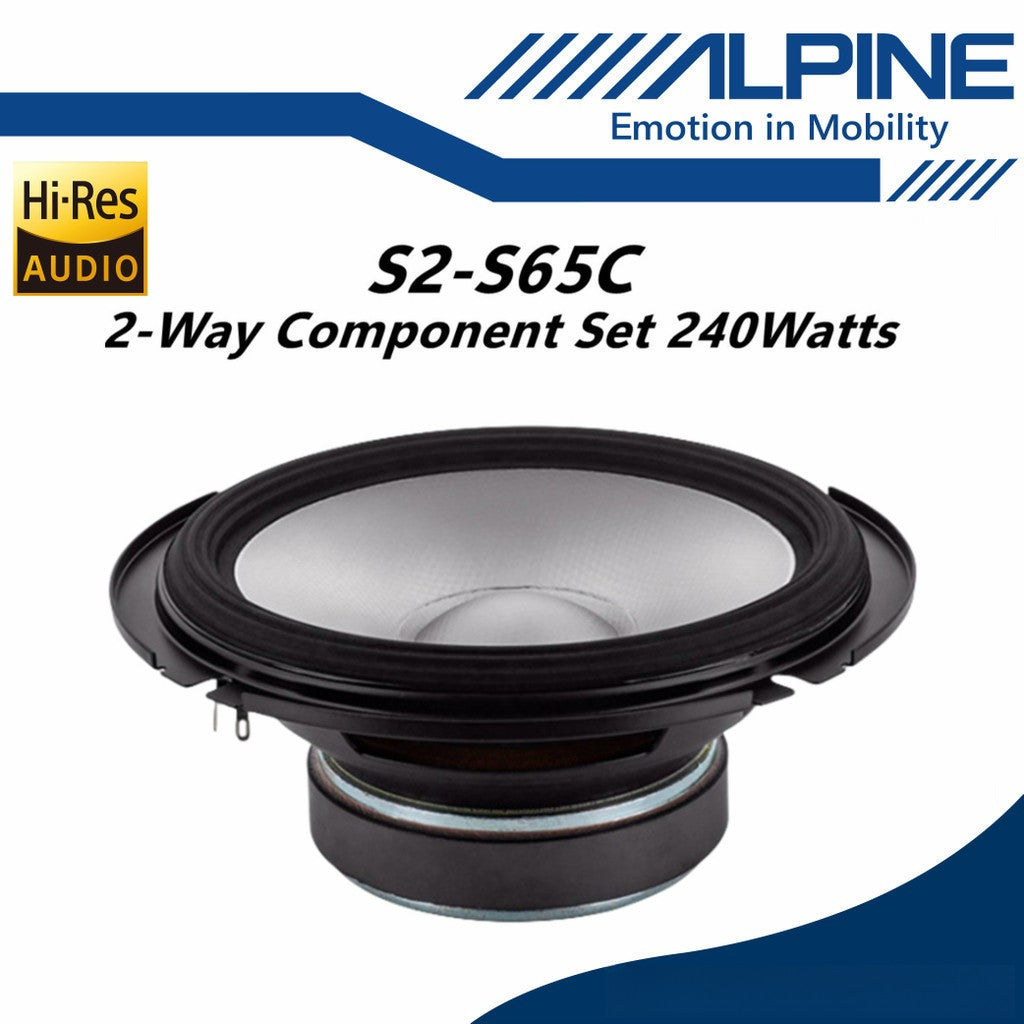

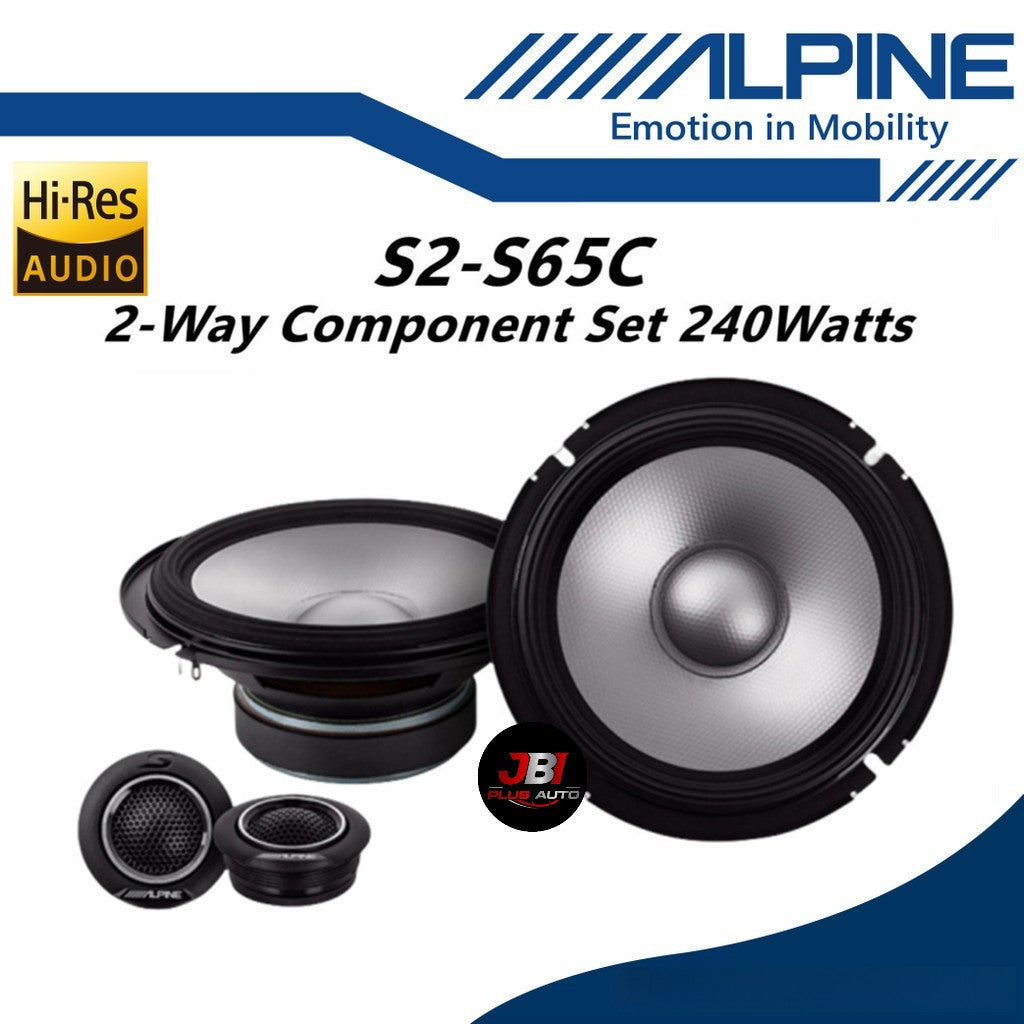

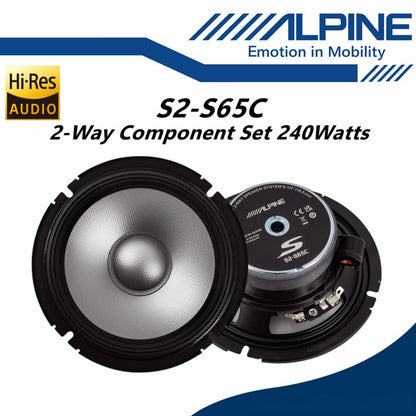

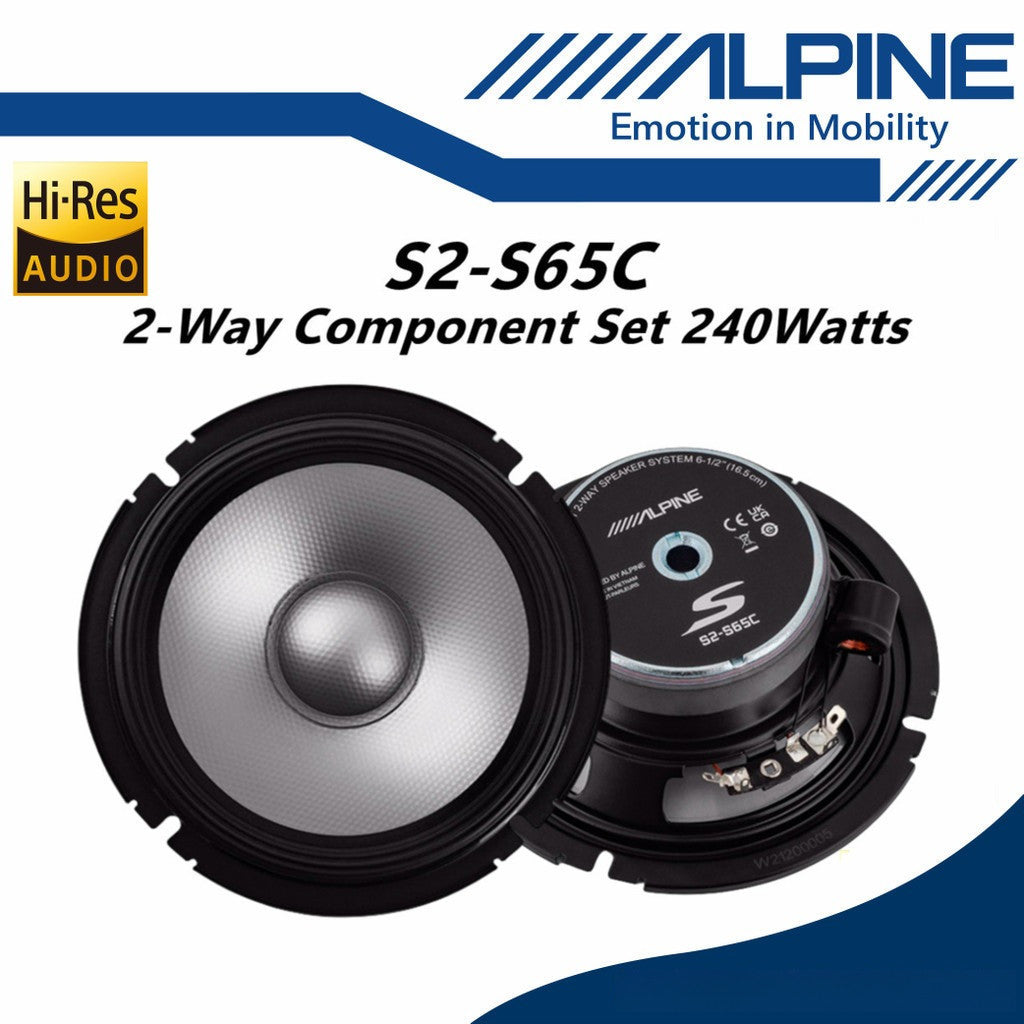

S2-S65C 2 Way Component Speaker
FEATURES
General
Woofer Size: 16.5cm (6-1/2")

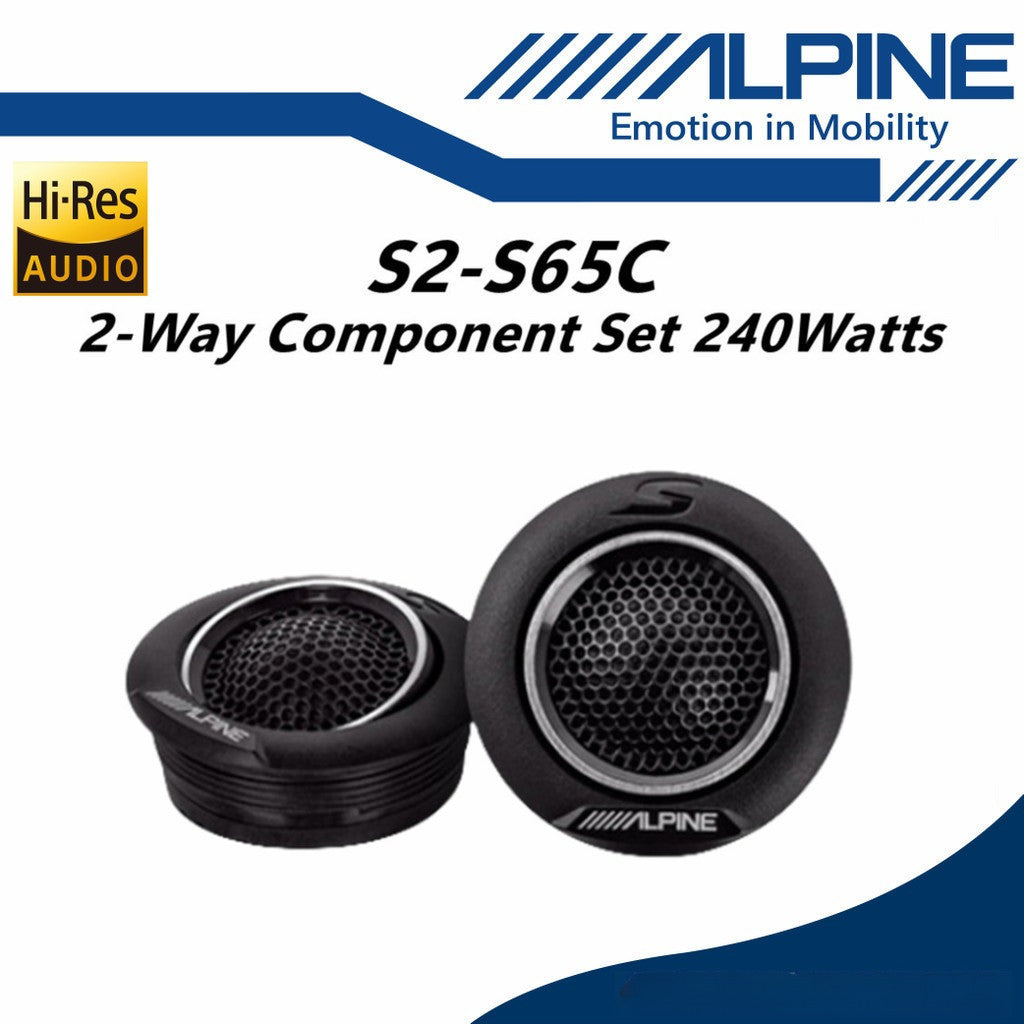

2.5cm (1“) Tweeters with Swivel Housing
Hi-Res Audio Certified (up to 40kHz)
Poly Propylene, Glass Fiber, and Mica Cone Material
Lightweight Design with High Output and Low Distortion
High-Amplitude Multi-Roll (HAMR) Surround
Compatible with KTE-S65G Speaker Grills (sold separately)
SPECIFICATIONS
Power Handling
Peak Power: 240 Watts
RMS Power: 80 Watts
Dimensions Woofer
Cutout Diameter (flush-mount): 128mm
Mounting Depth: 57.7mm
Mounting Height: 12.0mm
Magnet: 90.0mm
Dimensions Tweeter
Cutout Diameter (flush-mount): 51mm
Mounting Depth: 17.6mm
Mounting Height: 8mm
General
Frequency Range: 55 Hz - 40 kHz (Hi-Res Audio Certified)
Impedance: 4 Ohms
Sensitivity: 88 dB/W

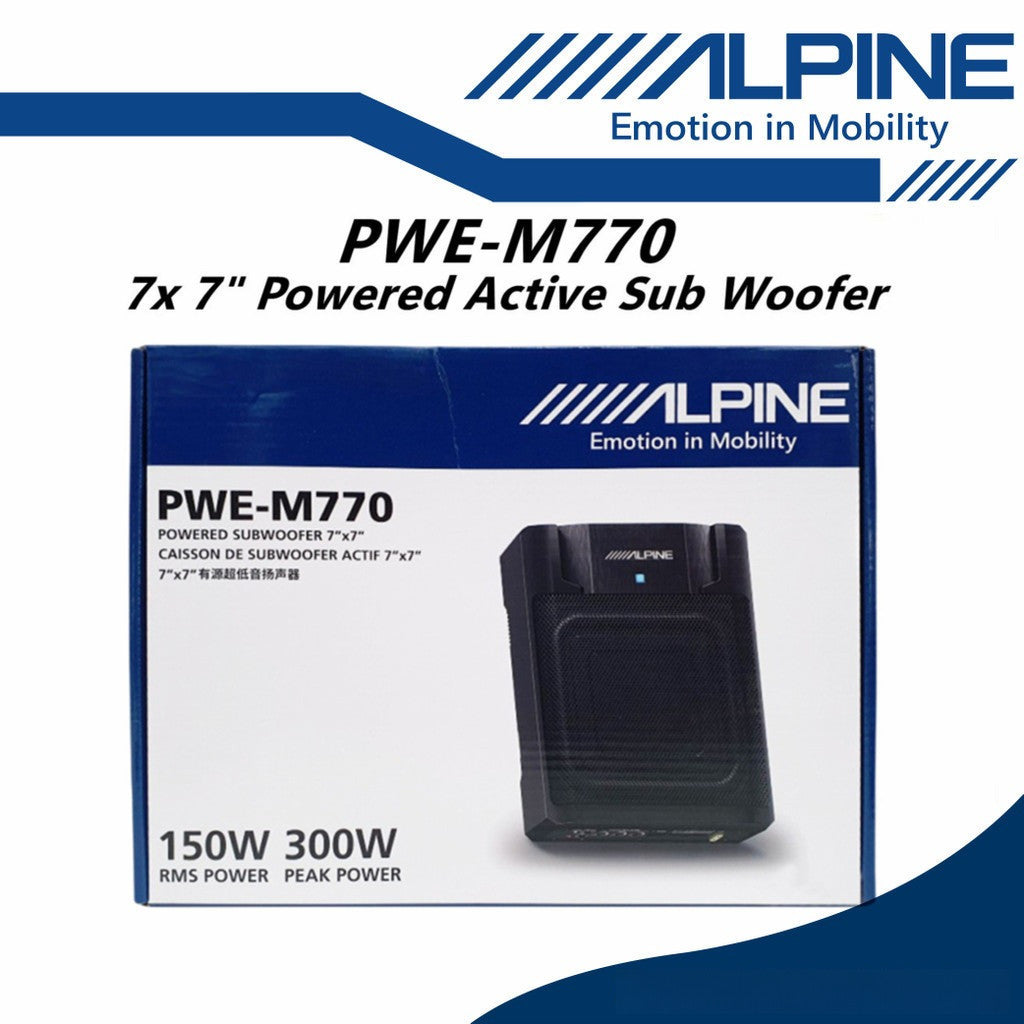

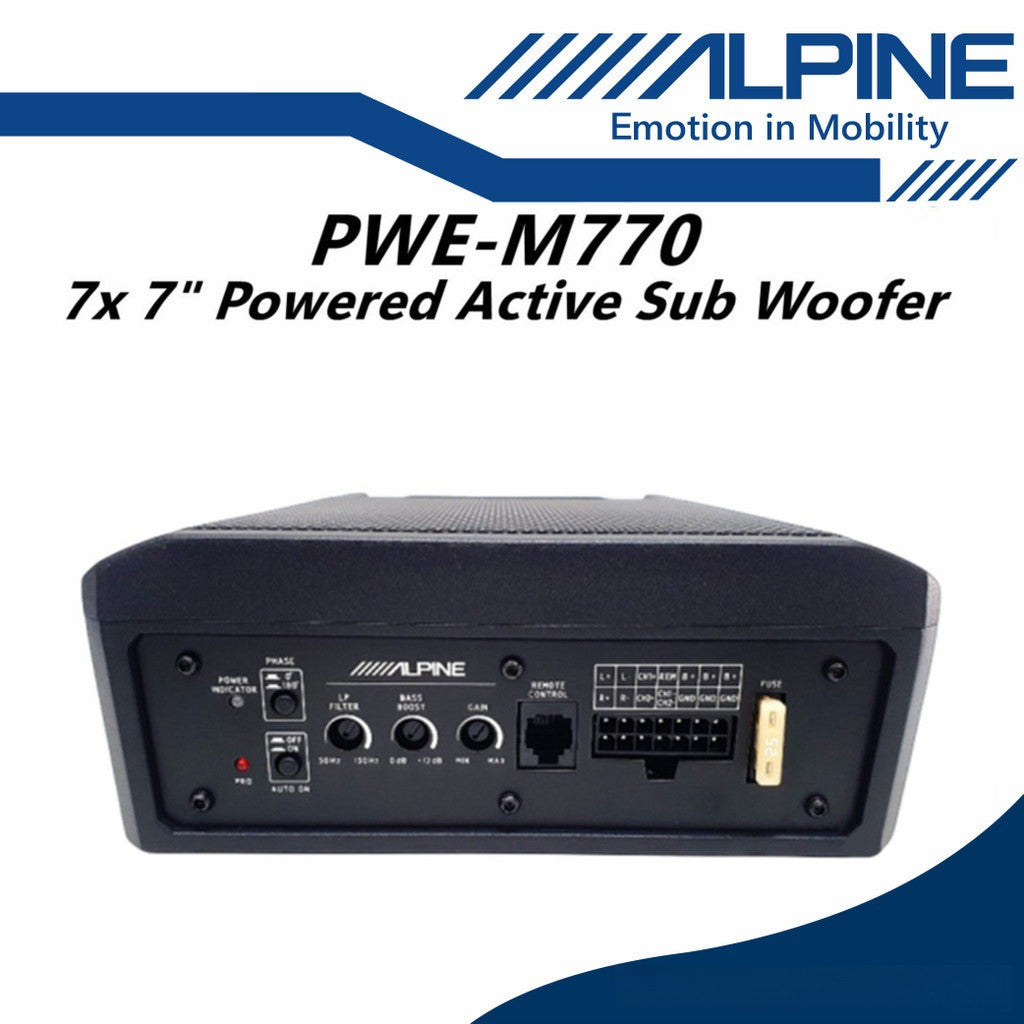

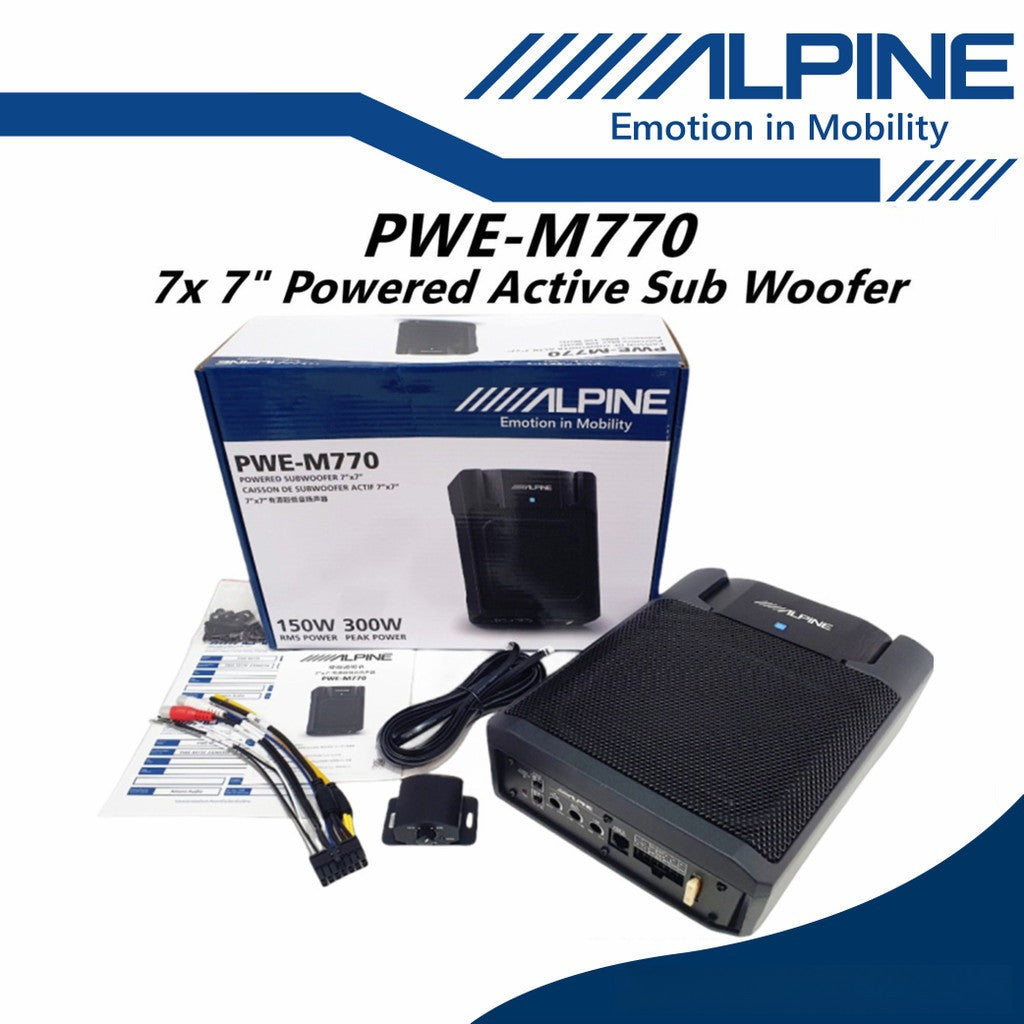

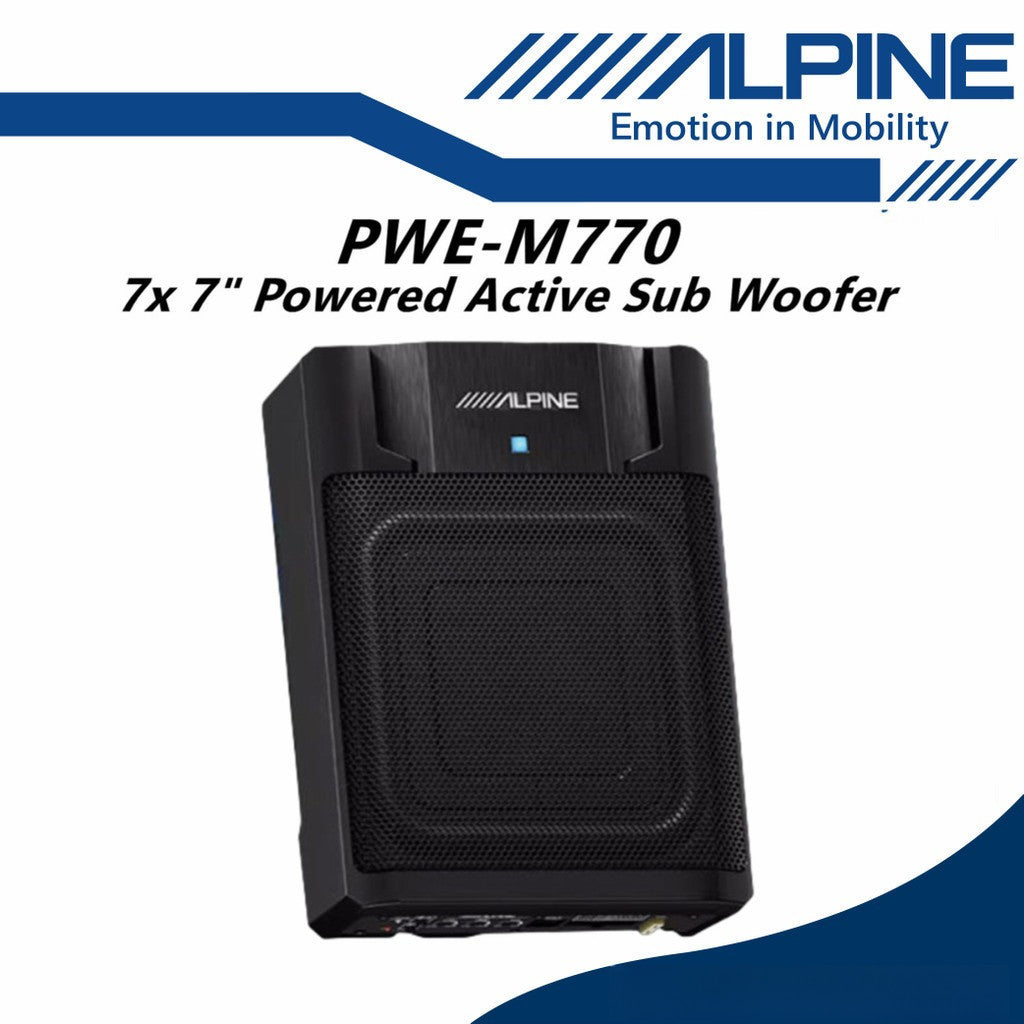

PWE-M770 Active Subwoofer
SPECIFICATIONS :
Unit Type: Subwoofer: 7"x7"
Maximum RMS Power: 150W
Maximum Peak Power: 300W
Signal-to-noise ratio: ≥90
THD: ≤0.2%
Frequency Response: 10Hz - 150Hz
High level Input Sensitivity: 1V
Low level Input Sensitivity: 100mV
Power Demand: DC12.4V
Working Temperature: -20°C~60°C
Storage Temperature: -40°C~85°C
Fuse Rating: 25A
Volume: 255x190x74mm
Net Weight: 4.0kg
