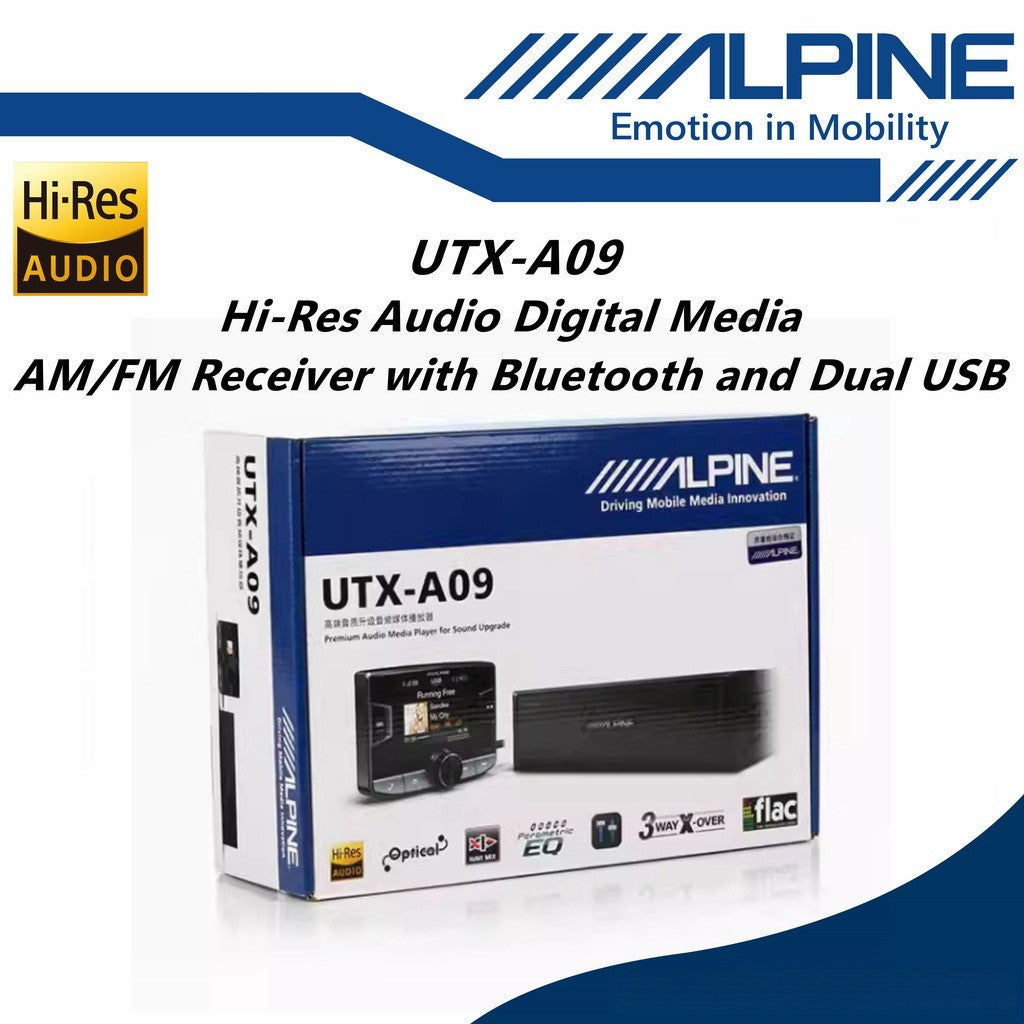

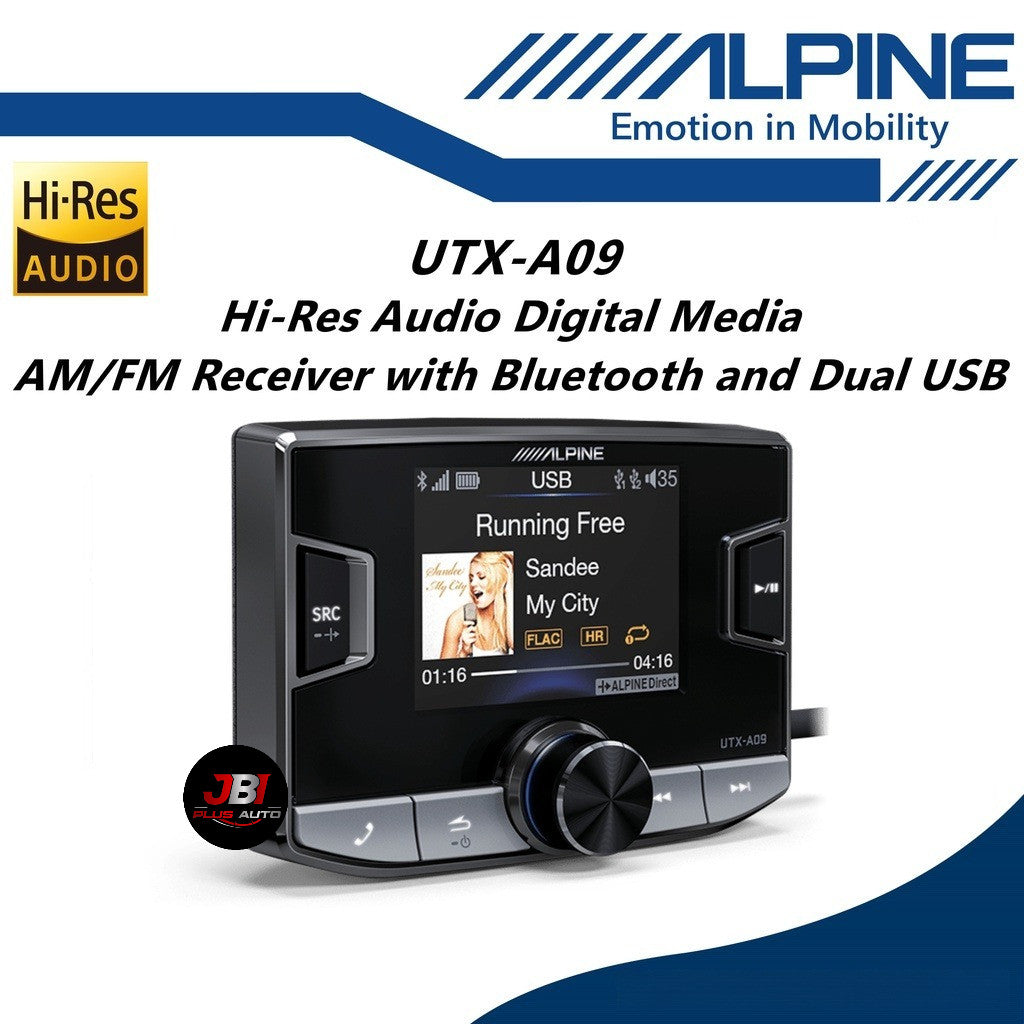

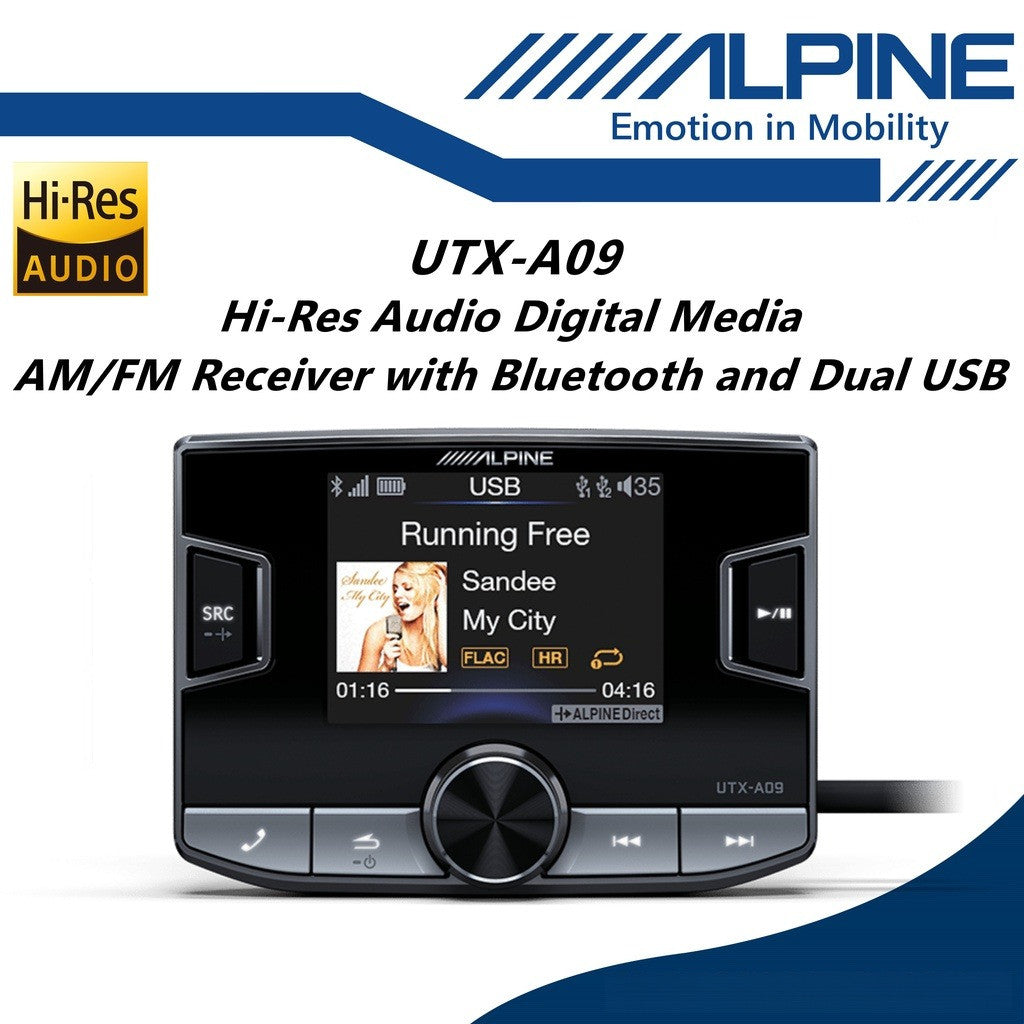

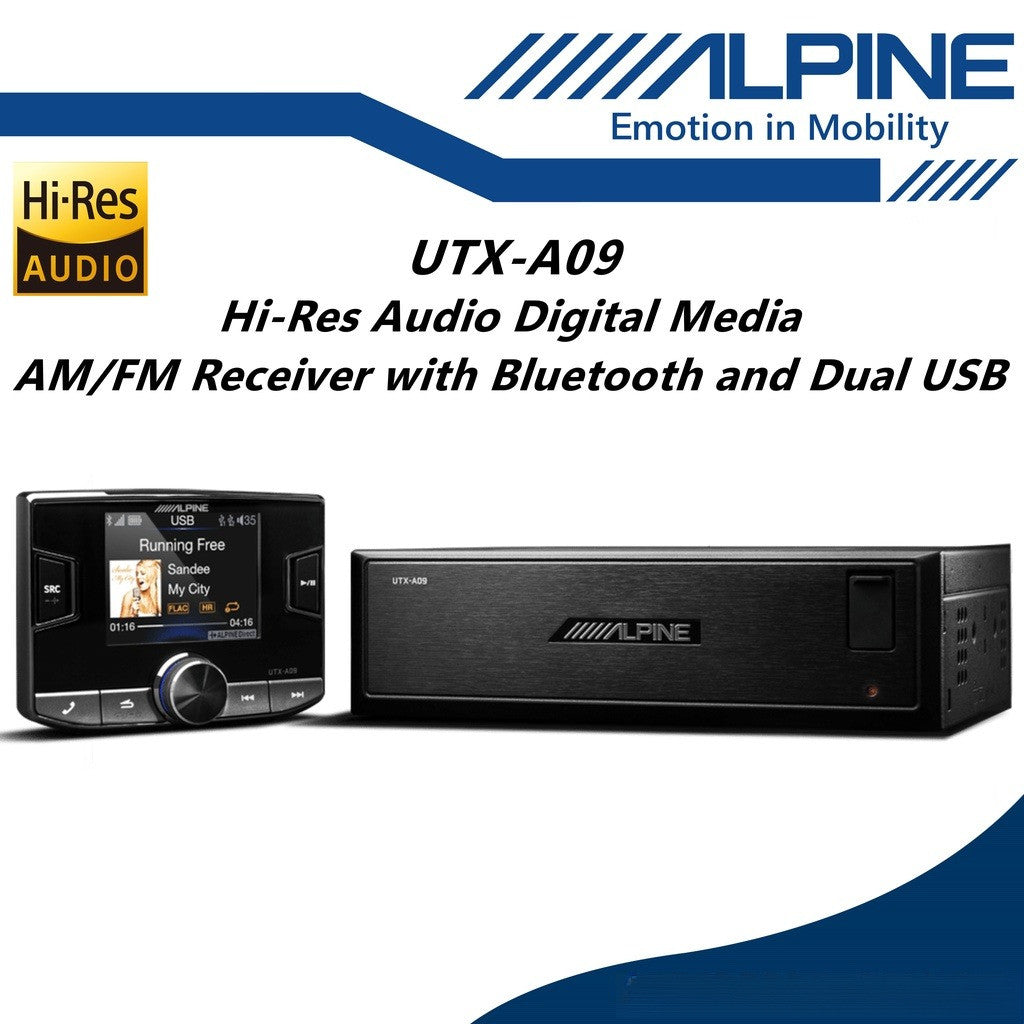

Alpine HI-RES Audio Car Digital Media AM/FM Receiver With Bluetooth And DUAL USB UTX-A09

Tuner

Memory Presets: Preset Stations (18 Total; 12 Stations for each band FM and AM

Memory: Auto Memory

BLUETOOTH®

Built-in BLUETOOTH® Module

HFP (Hands-Free Profile) Compatible

Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible

Connection: SSP (Simple Secure Pairing) Supported

Phone Book: Phone Book Synchronisation

Speed Dial: 4 Preset Memory (per phone)

Multiple Phone Number Registration: 4 Phone Numbers can be stored for one name

Device Name Display

Call History Display: Outgoing Calls / Incoming Calls / Missed Calls

Signal Strength Indicator

Battery Level Indicator

Microphone Included

Made for iPod® / iPhone®

Music Playback

Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook / iTunes Radio

Repeat

USB Media Connection

USB Connection: USB Extension Cable Included

Music Playback: FLAC/MP3/WMA/AAC/WAV/APE compatible

File / Folder Name Search

Folder Up / Down

Repeat

Sound Tuning

Bass Engine SQ

Subwoofer Level Adjustment

Subwoofer Phase Select

4V High Voltage PreOut

Equaliser: Flat (Initial Setting), Pops, Rock, News, Jazz, Hip Hop, Easy Listening, Country, Classical, Customise

Dual HD EQ (9-band Parametric Equaliser front/rear)

6 Channel Digital Time Correction

Digital Crossover Setting

MediaXpander HD

Easy, Step-by-Step Sound Customisation

Alpine TuneIt App ready

General

Power Output: 4 x 22 W Power Amplifier

3 PreOuts (4V)

AUX-In: 1 AUX Input (3.5mm micro jack)

Aux Input Navi Mix Level Adjustment (0~12)

Steering Wheel Remote Control Function (via optional steering wheel interface)

Remote Control Ready (Optional)

Menu Language: 2 Languages, English / Chinese (Initial Setting)

Auto Dimmer

Power Antenna Lead

Specifications

FM Tuner

Tuning Range: 87.5 – 108.0 MHz

Mono Usable Sensitivity: 15.8 dBf (1.7 µV / 75 ohms S/N: 30dB)

Signal-to-Noise Ratio: 60 dB

AM Tuner

Tuning Range: 531 – 1,602 kHz

Sensitivity: 32 µV (S/N: 20dB)

Signal-to-Noise Ratio: 50 dB

USB

USB Requirements: USB 2.0

Max. Power Consumption (Rear USB): 1 A

File System: FAT 16/32, exFAT

Signal-to-Noise Ratio: 95 dB

Max. number of songs that can be played back (Total number of songs in front and rear USB): 10,000

MP3 Decoding: MPEG AUDIO Layer-3

WMA Decoding: Windows Media™ Audio

AAC Decoding: AAC-LC format “.m4a” file

WAV Decoding: Waveform sound file

FLAC Decoding: Free Lossless Audio Codec

APE Decoding: Monkey’s audio

BLUETOOTH®

BLUETOOTH® Version: Bluetooth V4.0

General

Power Requirement: 14.4 V. DC (11-16V allowable)

Power Output: 22W x 4 (1kHz, 5% THD, 4 Ω load, 2ch test)

Bass: ±9.1 dB at 100 Hz

Treble: ±9.1 dB at 10 kHz

Weight: 0.8 kg
