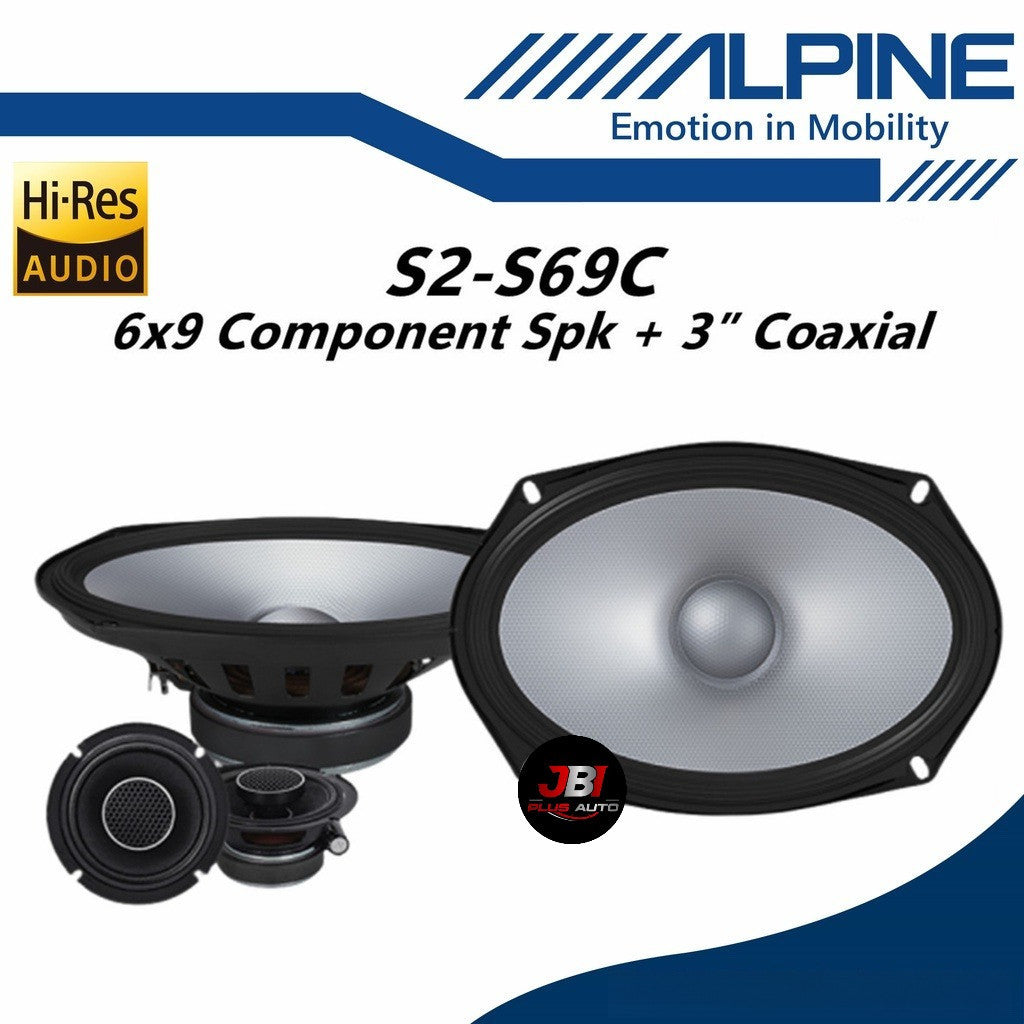

Alpine 6x9 Component Speaker With Coaxial Set Hi-Res Audio Component Speaker System (3") S2-S69C

-Experience the rich detail and sonic excellence of Alpine’s next-generation S-Series loudspeakers — now featuring Hi-Res Audio for the first time.

-The S-Series continues to establish the benchmark in sound quality and value by producing impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.

-Alpine innovation continues with all-new technology and engineering in the construction and materials adopted in the new S-Series. The exclusive design composite glass fiber hybrid cone is extremely rigid and lightweight, which further unites with Alpine’s patented HAMR surround to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL.

-The S2-S69C now presents even greater value and increased vehicle compatibility into modern SUV and Ute vehicles that feature large 6×9” door speakers with a 3” Mid-driver or tweeter set within the dashboard. Moreover, the 3” mid-tweeters compact size also suit custom-fit installation into certain factory tweeter locations of other vehicles.

-The natural sounding pulp cone 3″ Mid-range combined with the 1” soft dome tweeter delivers an incredibly smooth and detailed mid to high frequency response that’s extended right up to 40kHz — so you can hear the finest nuances in your music.

-With an extensive range of component and coaxial speakers, the new S-Series is the most impressive and versatile speaker line-up ever, providing system configuration flexibility and installation compatibility into virtually any vehicle type.

-Take your in-car sound to the next-level with the new S-Series loudspeakers rivalling performance far beyond their modest price-point.

Features

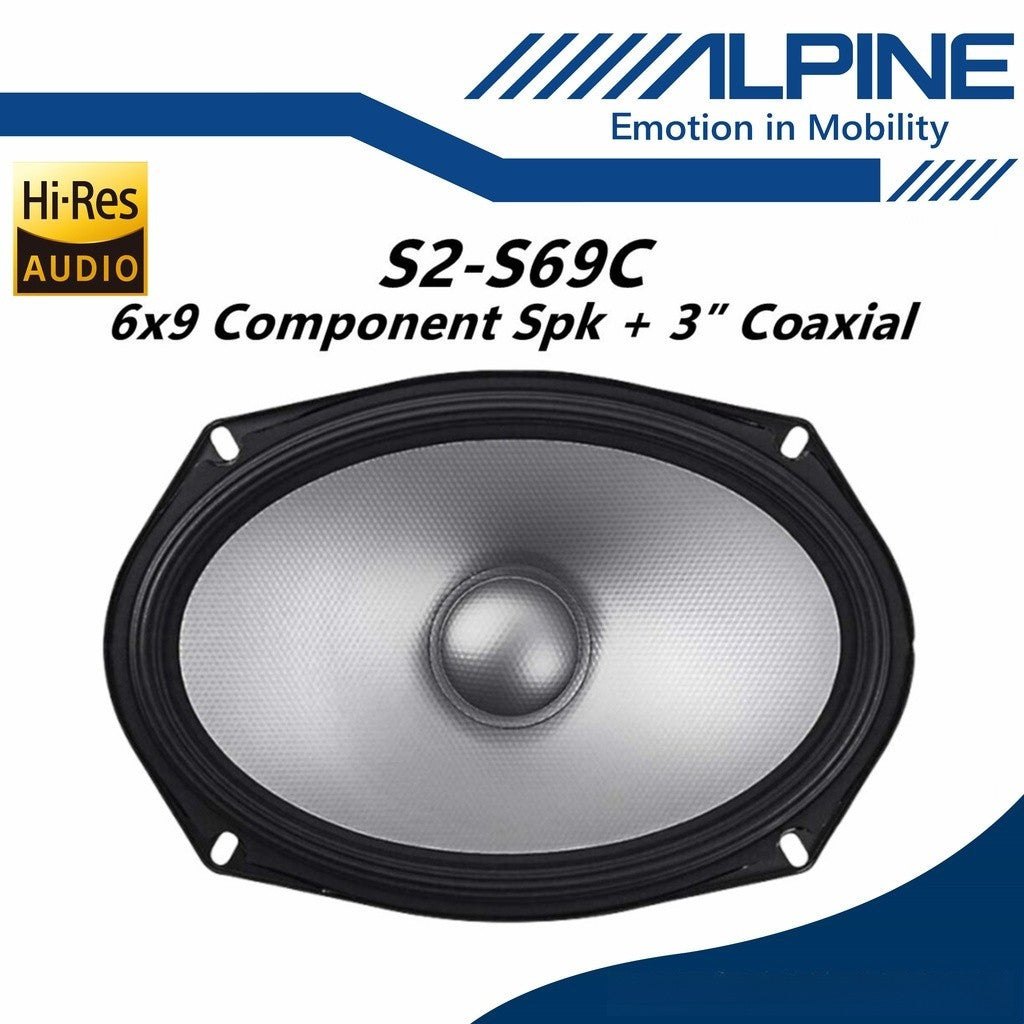

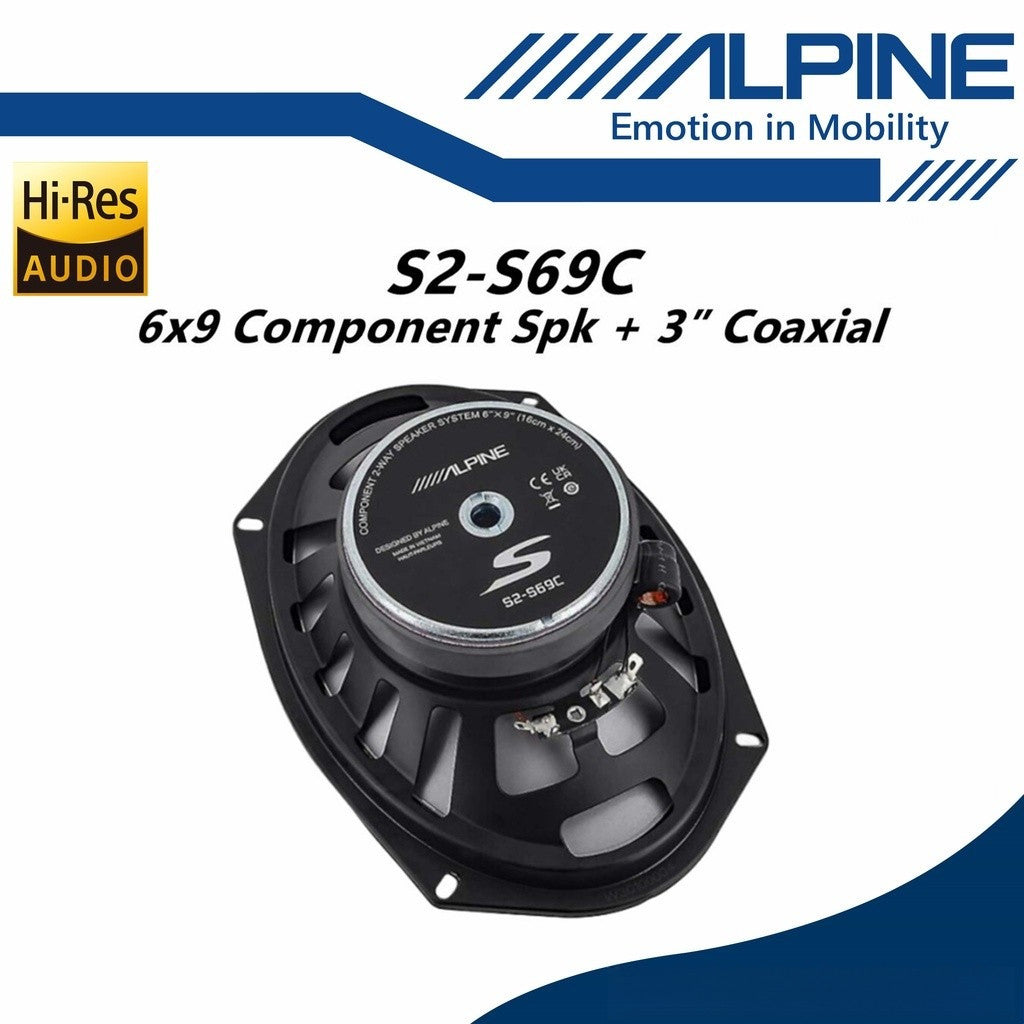

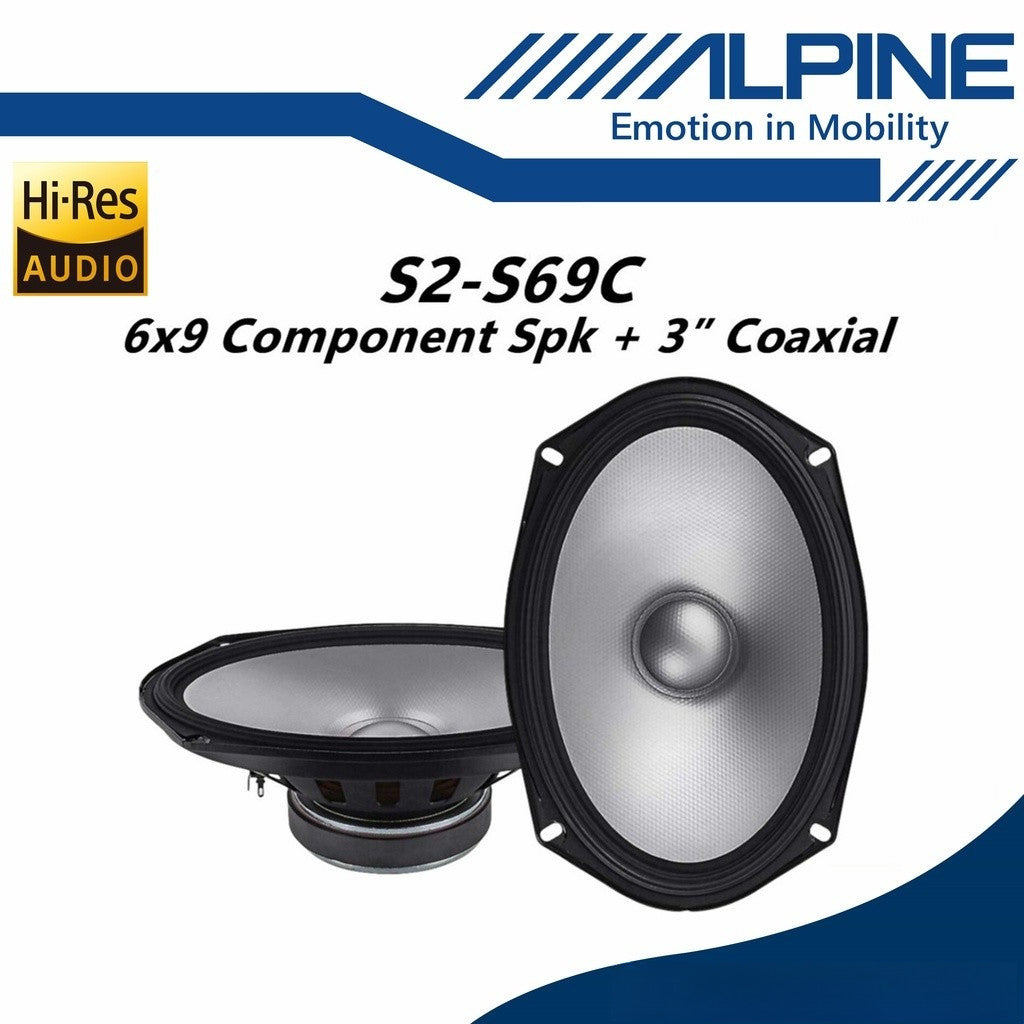

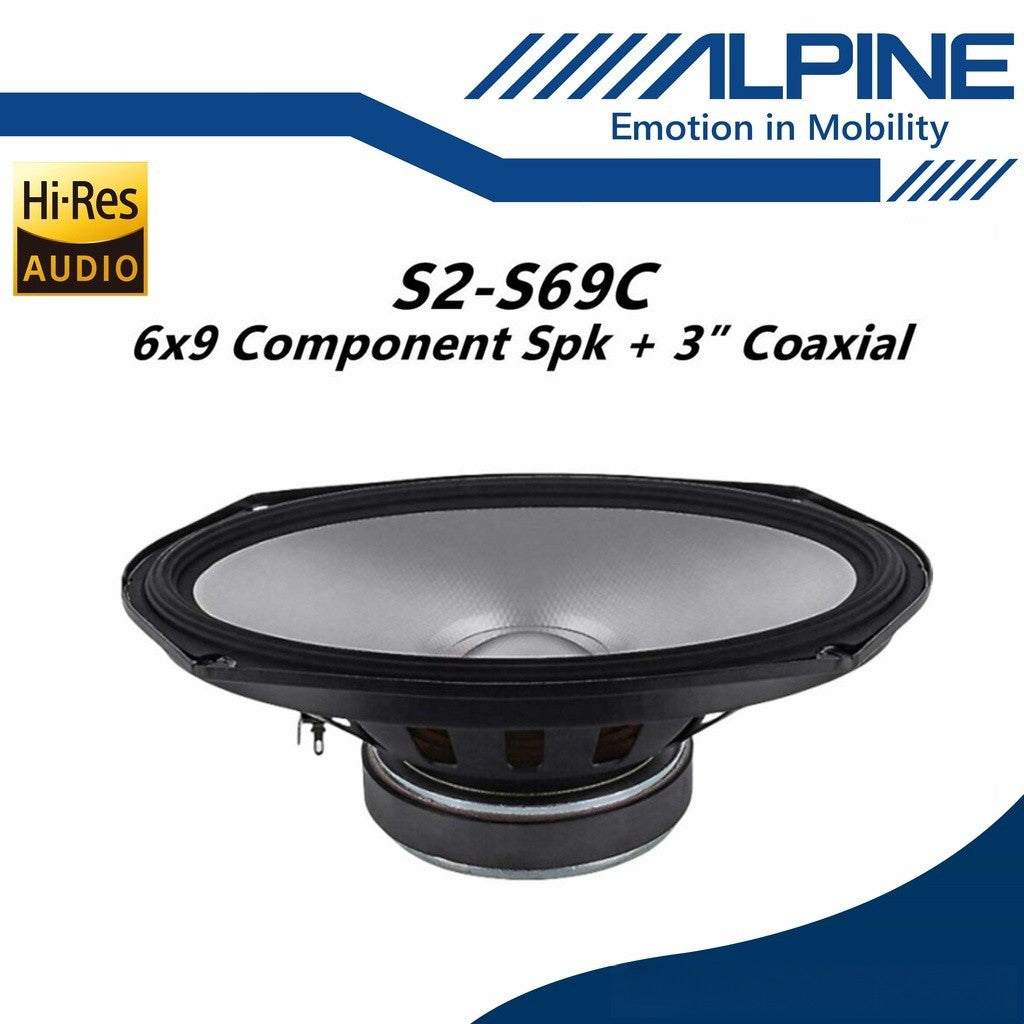

Woofer

6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker

HAMR (High Amplitude Multi-Roll) Surround

Large 35mm Voice Coil

Magnet Material: Strontium Ferrite

Grill sold separately: KTE-S69G

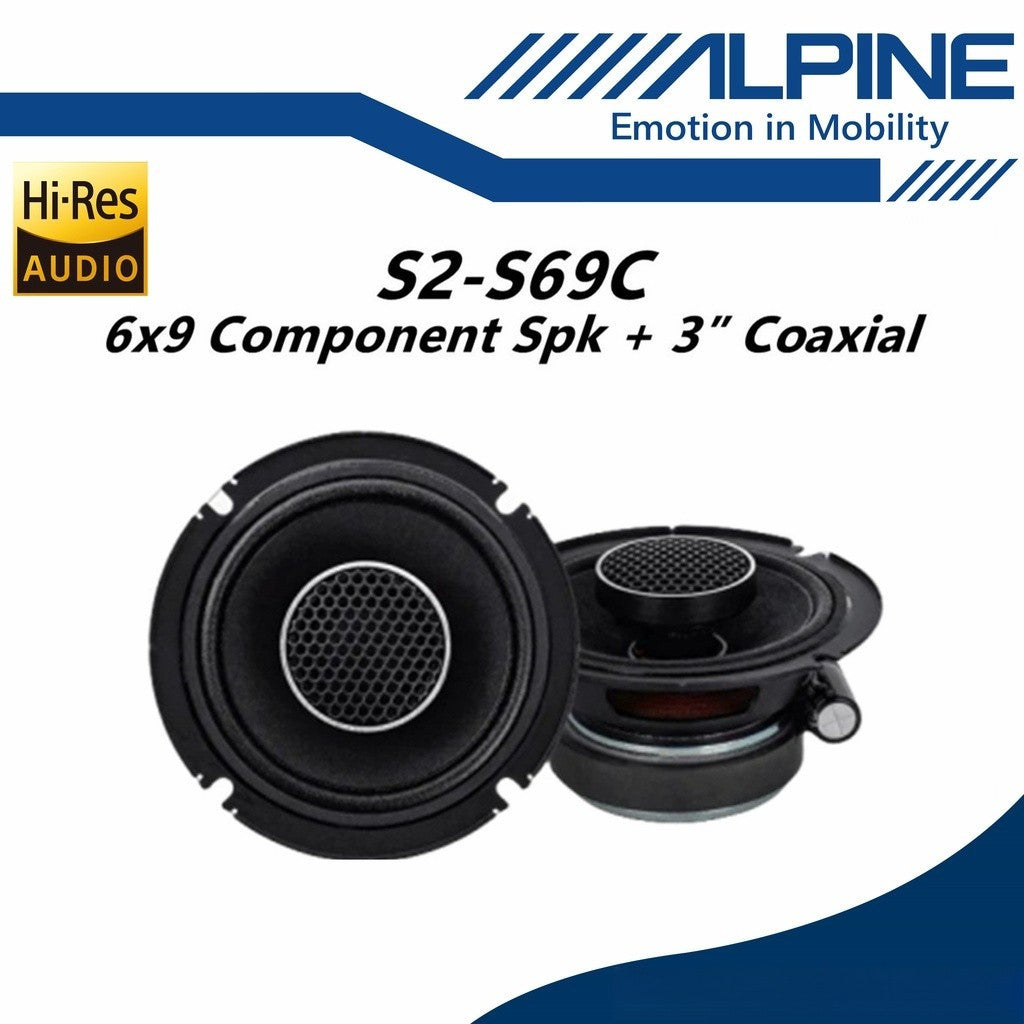

Mid-Tweeter

3″ (79mm) Pulp-Cone Coaxial Speaker with 1″ Extended-Range Soft Dome Tweeter

Magnet Material: Strontium Ferrite

Tweeter Grill: Perforated Net

Crossover Network

Woofer: Integrated Copper Air-Coiled Wound Inductor

Mid/Tweeter: High Grade Audio Poly Capacitor

Power Handling

Peak Power : 260 Watts

RMS Power : 85 Watts (CTA-2031 Compliant)

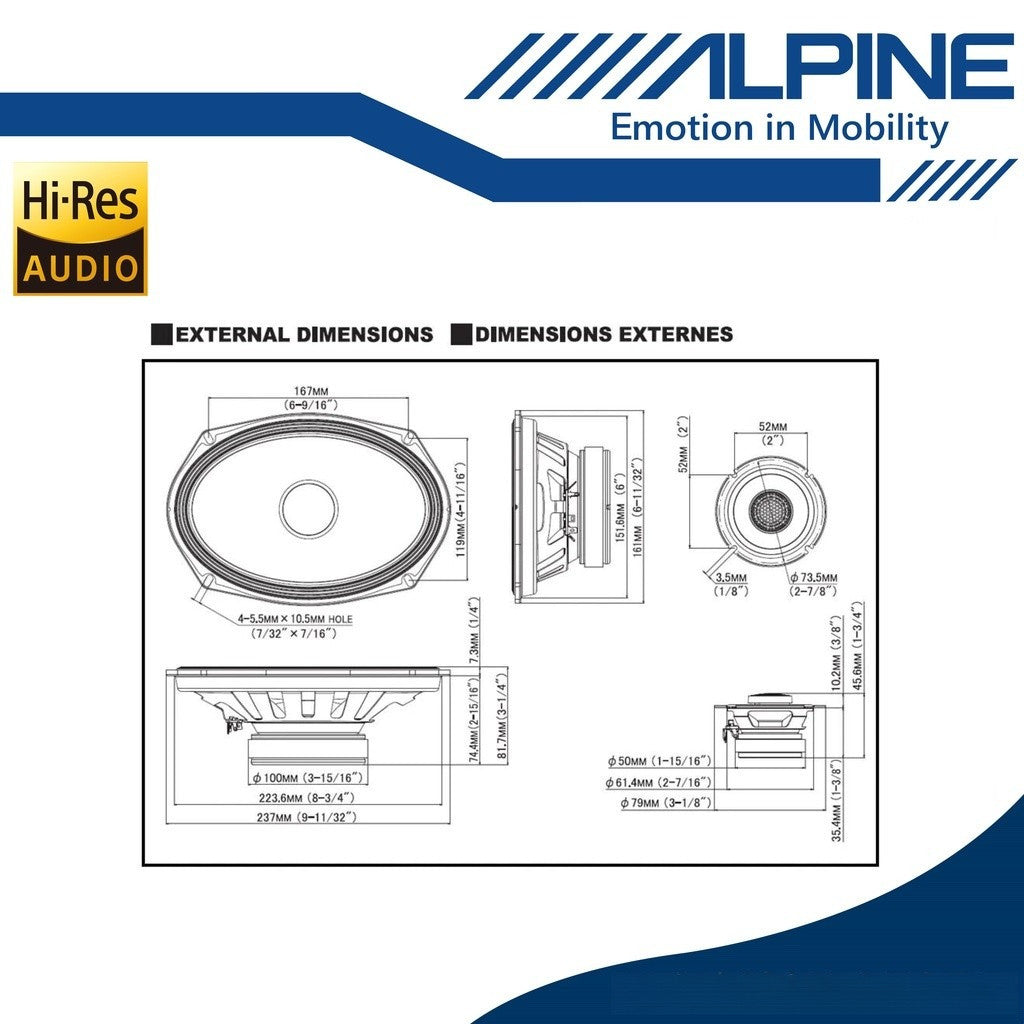

Dimensions Woofer : Frame 237 mm x 161mm

Cutout Diameter : 242mm x 152mm

Mounting Depth : 74.5 mm

Mounting Height : 7.3 mm

Magnet : 100.0 mm

Dimensions Mid-Tweeter

Frame : 79mm

Mounting Diameter : 61.4mm

Mounting Depth : 10.2mm

Magnet : 50mm

Height : 45.6 mm

General

Frequency Range : 55 Hz – 40 kHz

Impedance : 4 Ohms

Sensitivity : 90 dB SPL (1W @1m)

Recommended Amplification : Up to 85W RMS per channel
