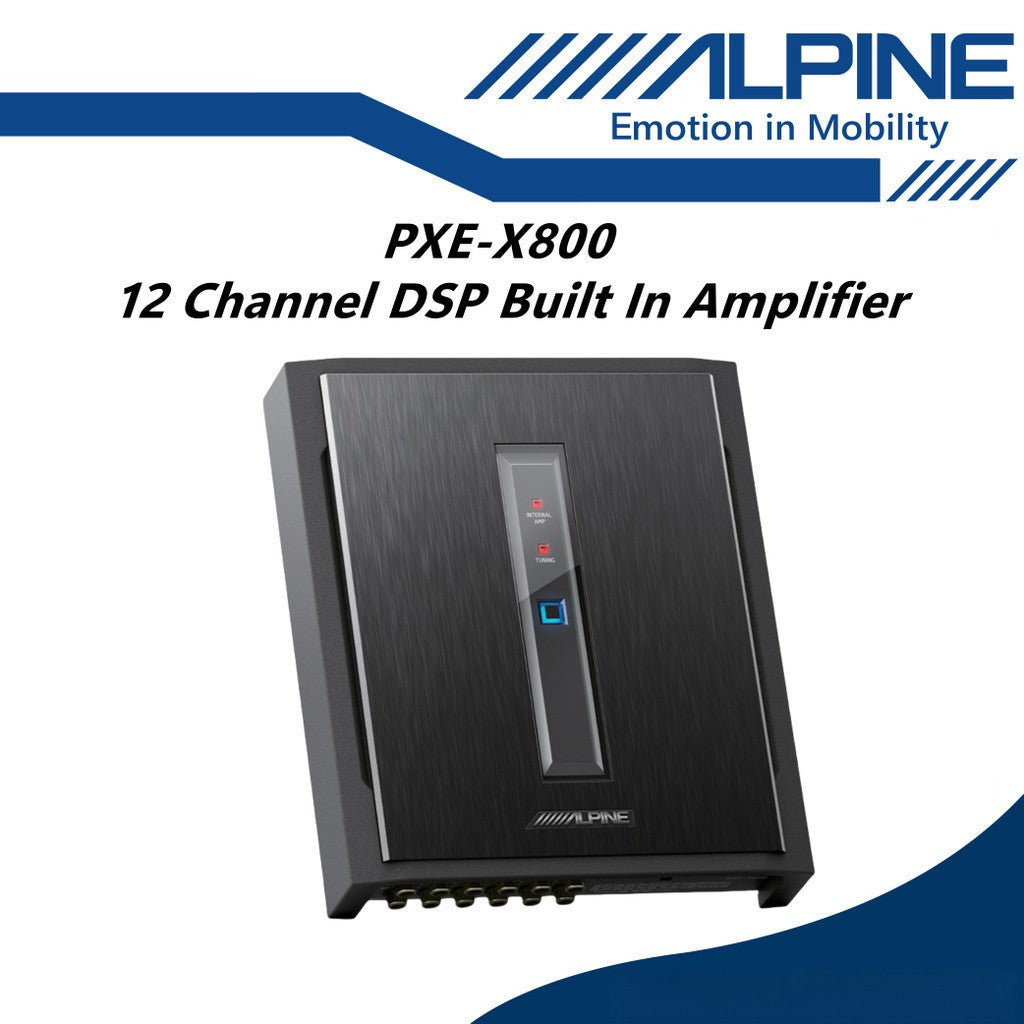

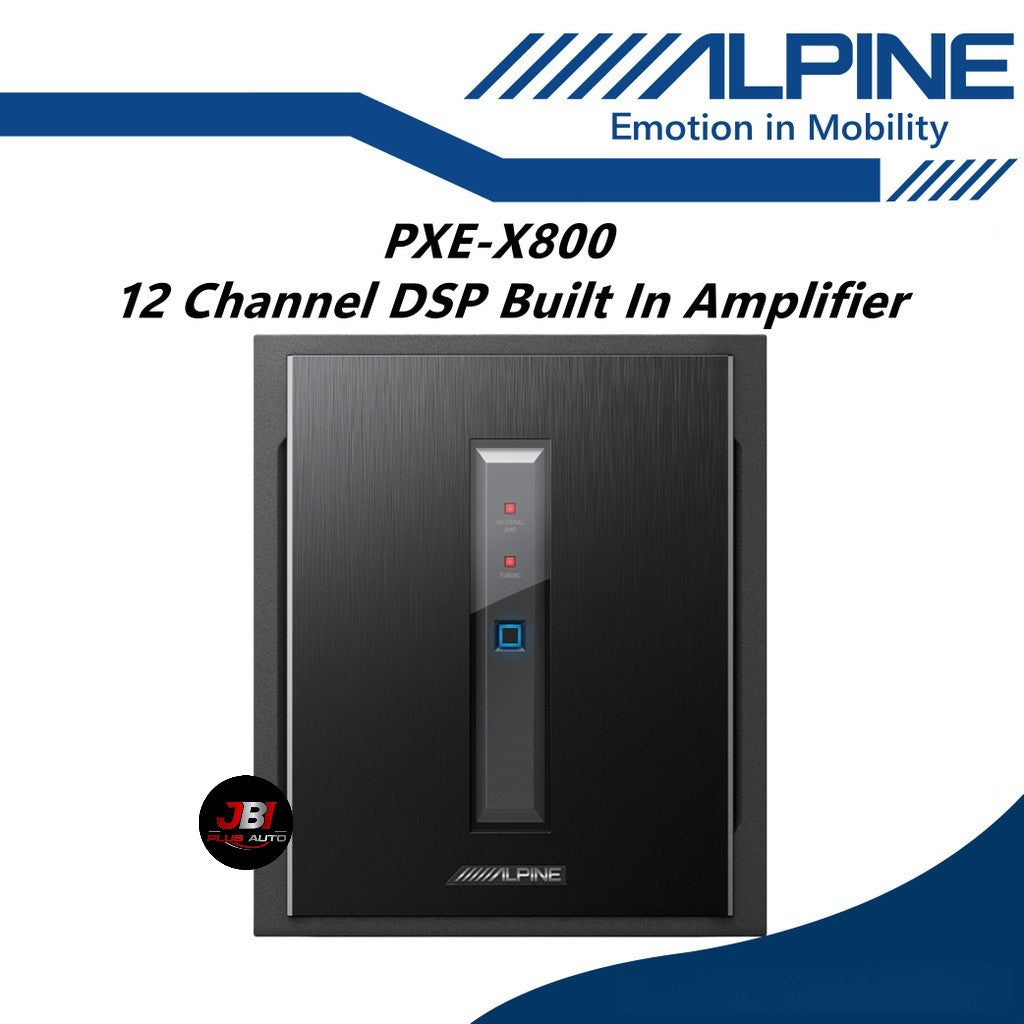

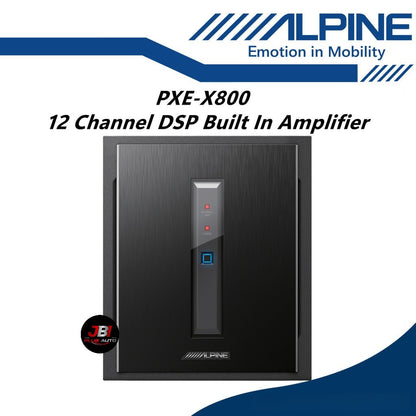

Alpine 12 Ch Car DSP Sound Processor Built In Amplifier Digital Signal Processor PXE-X800

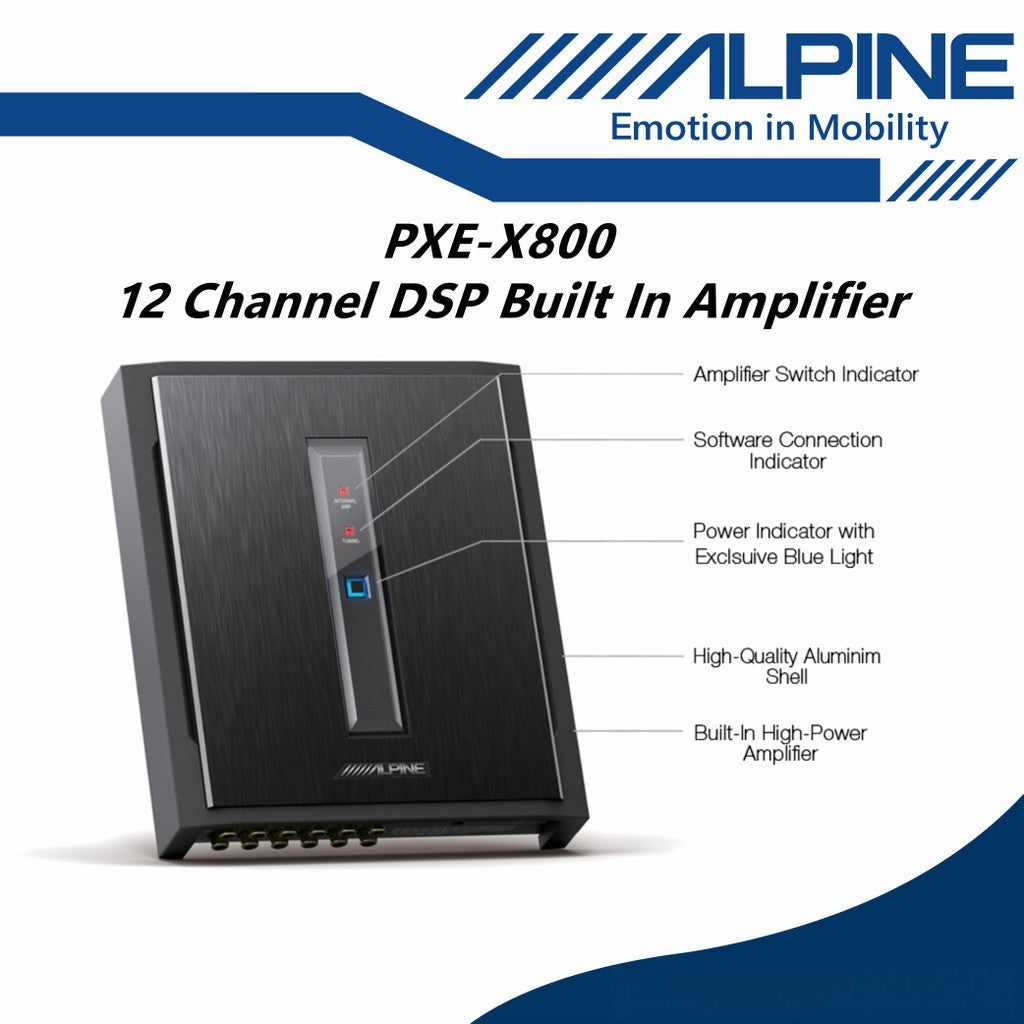

Beneath its stunning high-end design, the PXE-X800 brings a powerhouse of Alpine innovation to create a class-leading sound processor power amplifier composed of advanced digital sound processing and AptX lossless music streaming.

Equipped with 31-bands of parametric or graphic EQ adjustment and digital channel time correction, the degree of tune-ability through the smartphone app or easy-to-use PC software is virtually limitless. Furthermore, the multitude of digital and analogue I/O available allows the PXE-X800 to connect and integrate seamlessly with almost any desired system configuration.

The PXE-X800 is the ultimate audio solution for OEM upgrades all the way to high-end systems, its extensive tuning capabilities and broad flexibility makes it adaptable to any system application that demands highly accurate and powerful sound.

Features

Frequency response

20Hz – 20KHz/ 1Hz step

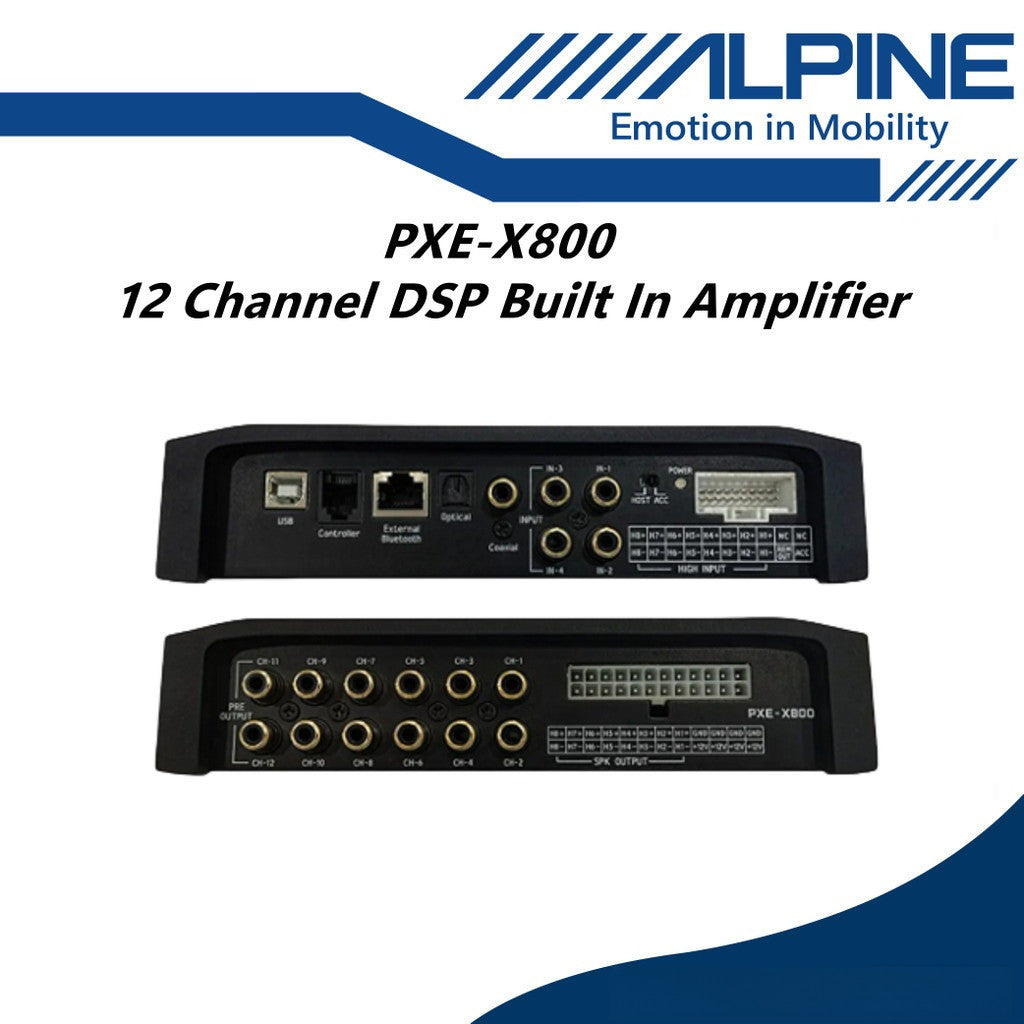

Inputs

12-channel RCA audio

Built-in AMP

Slope 6/12/18/24/30/36/42/48 dB

Optical/ Coaxial

Outputs

4 x 25W (Rated power)

4 x 50W (Max power)

Sound & Tuning

31 Bands parametric EQ

31 Bands graphic EQ

Time correction (up to 20ms/ ch)

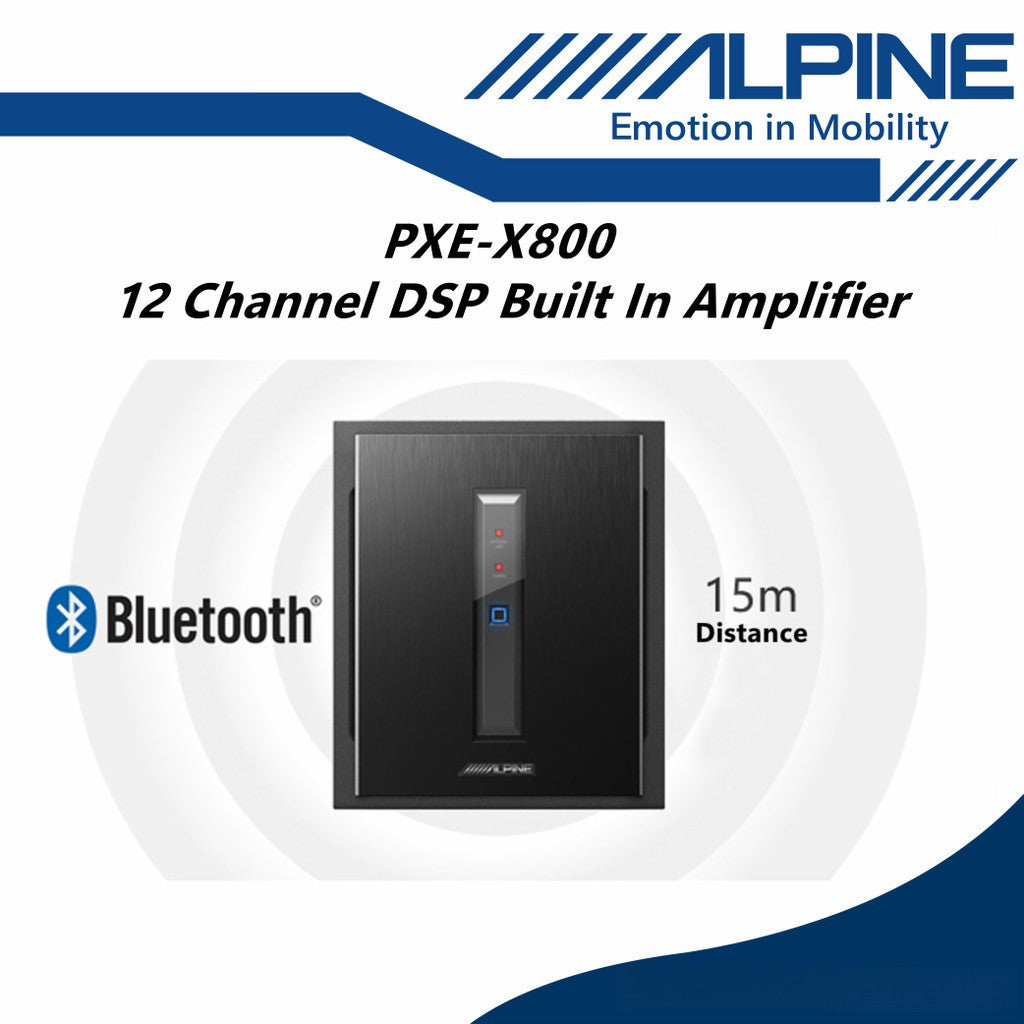

AptX Bluetooth lossless format

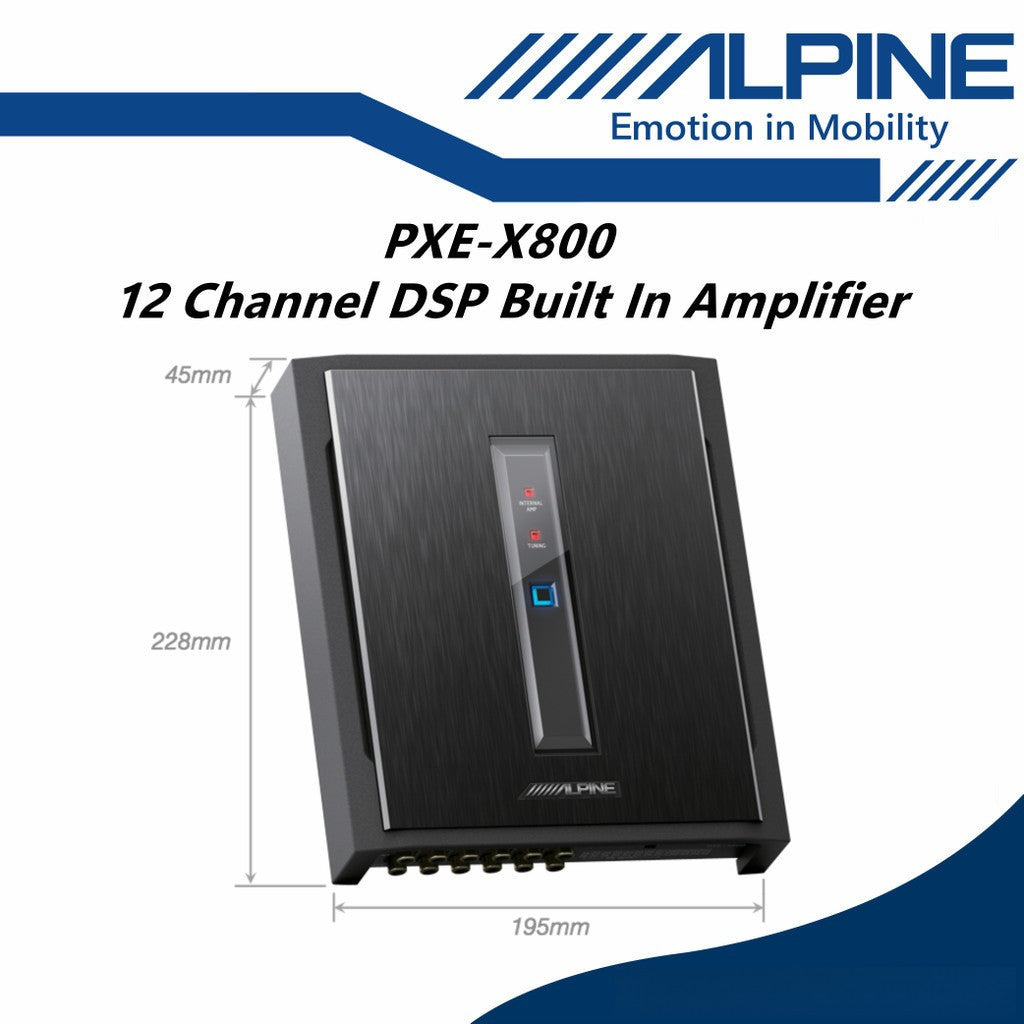

Dimension

228.2mm x 194.5mm x 45mm

Specifications

Dynamic range: ≥100dB

SNR (RCA): ≥110dB

Background noise: High level: 93.3uVrms; RCA：8uVrms

Channel resolution: ≥80dB

THD: ≤0.05%

Input voltage: High level: 30Vpp; RCA：5Vpp

Output voltage: High level CH1~CH4: 40 Vpp, high level CH5~CH8: 28 Vpp; RCA: 8 Vpp

Rated power: CH1~CH4：50W，CH5~CH8：25W(4Ω, 14.4V, 1kHz, 10%THD)

Maximum power: CH 1 ~ CH4：100W，CH5~ CH8：50W(4Ω, 1 4.4V, 1kHz, 10%THD)

Input / output sensitivity (RCA): 1:1.23 (no power amplification)

System sampling rate: 48kHz/24bit

Input impedance: High level: 51Ω; RCA：20kΩ

Output impedance: 51Ω

Operating voltage: 9~16V

Quiescent current: ≤3mA (in off state)

Stand-by power consumption: ≤0.1W

REM startup input: High level (H1-/H1+), ACC selectable

REM startup output: 12V(0.2A)

Uptime: 10s

Operating ambient temperature: -20~60℃

Storage temperature: -40~85℃
